ZF Marine Gasket & Seal Kit for HBW10/150, ZF 12M, 15M, 15MA Gearboxes

Part No: ZF-3306199001

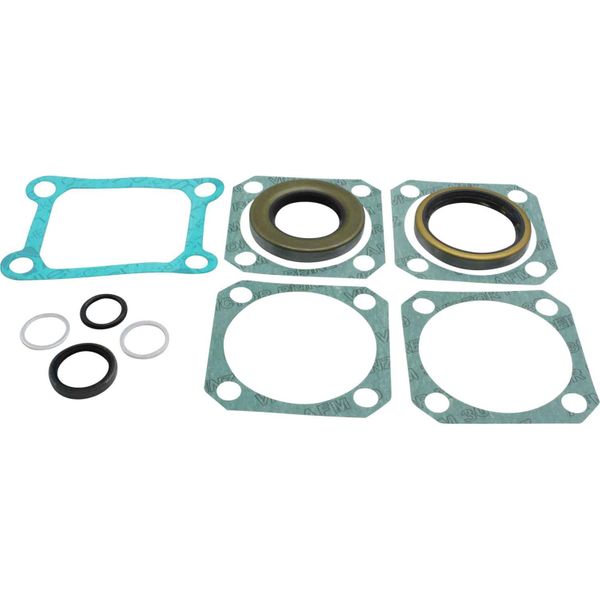

ZF 3306 199 001 gasket and seal kit is for HBW 10 and HBW 150, ZF 12M, ZF 15M and ZF 15MA gearbox models. Replaces ZF 947.42.630.01 and 500428. The gasket and seal kit contains the following:

- 1 x 0634 502 009 shift cover sealing ring

- 1 x 0634 303 118 intermediate shaft O-ring

- 2 x 3306 301 016 drain plug/oil dipstick sealing ring

- 4 x 3306 301 014 cover gasket

- 1 x 3306 301 015 shifting cover gasket

- 1 x 0634 301 833 input shaft sealing ring

- 1 x 0634 300 466 output shaft sealing ring
