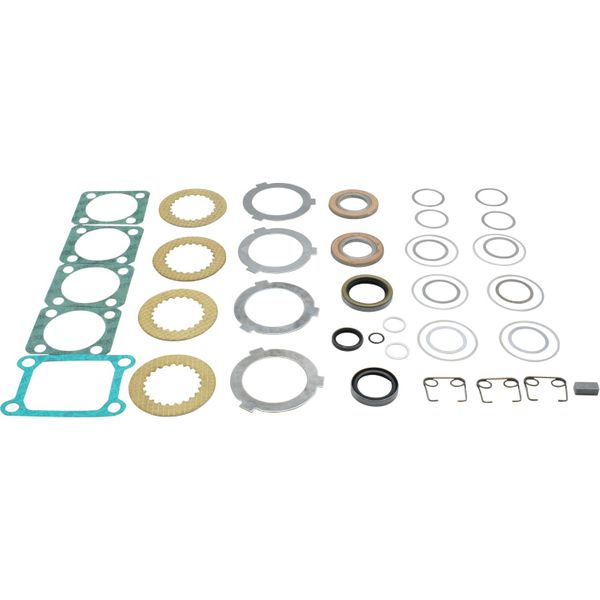

ZF Gasket and Seal Kit for ZF 3M, 5M, Hurth HBW 35 & HBW 50 Gearboxes



Part No: ZF-3303199002

ZF 3303 199 002 gasket and seal kit is suitable for use with ZF 3M, ZF 5M, Hurth HBW 35 and HBW 50 series marine gearboxes. Replaces ZF 947.72.631.01 and 500436. The gasket and seal kit contains the following ZF spares:

- 1 x 0634 502 009 Shift cover sealing ring

- 1 x 0634 306 179 Shift fork shaft O-ring

- 2 x 3306 301 016 Drain plug/oil dipstick sealing rings

- 4 x 3304 301 015 Cover gaskets

- 1 x 3306 301 015 Shifting cover gasket

- 1 x 0634 301 830 Input shaft sealing ring

- 1 x 0634 300 371 Output shaft sealing ring

- 2 x 0501 336 515 Bearing/gear thrust washers

- 4 x 3304 304 040 Clutch pack inner clutch discs

- 4 x 3304 304 021 Clutch pack outer clutch discs

- 3 x 3306 304 024 Disc carrier springs

- 1 x 0631 501 634 Output shaft key

- 2 x 3304 304 029 Clutch pack shims 0.15mm

- 2 x 3304 304 030 Clutch pack shims 0.20mm

- 2 x 3304 304 031 Clutch pack shims 0.30mm

- 2 x 3304 304 032 Clutch pack shims 0.40mm

- 2 x 3304 304 033 Clutch pack shims 0.50mm

- 2 x 3304 304 032 Input + output shaft shims 0.40mm

- 2 x 3304 304 033 Input + output shaft shims 0.50mm



Brand	ZF Marine
Gearbox Manufacturer	ZF Hurth
Gearbox Spares	Seals, Gaskets, O-rings & Kits
Contents	Sealing Rings, Gaskets, Shift Fork Shaft O-Ring, Drain Plug/Oil Dipstick Sealing Rings, Input & Output Shaft Shims, Thrust Washers, Clutch Discs, Springs, Output Shaft Key & Clutch Pack Shims
Replaces	ZF 947.72.631.01 & 500436
