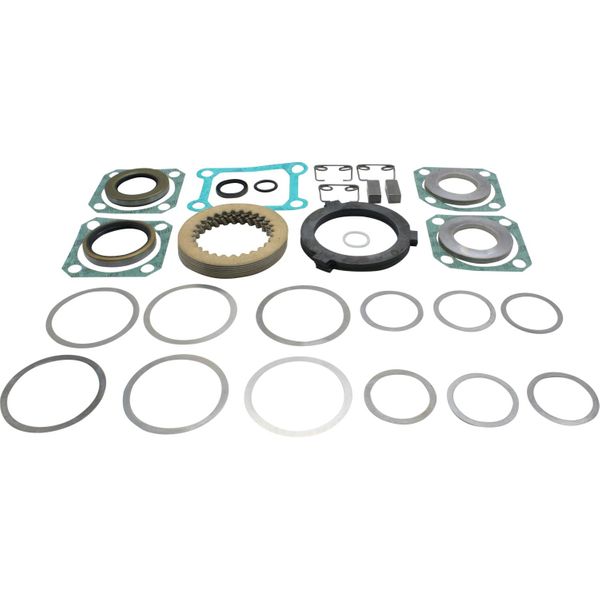

ZF Clutch, Gasket & Seal Kit 3306 199 007 for ZF Hurth Gearboxes

Part No: ZF-3306199007

This Genuine ZF Marine clutch, seal & gasket kit is for the; ZF12M, ZF15M, ZF15MA, HBW125, HBW150 and the HBW150A gearboxes. Replaces ZF 947.42.631.01 and 500438.

This Seal & Gasket Kit contains the following:

0634 502 009 - 1x Shift Cover Sealing Ring

0634 303 118 - 1x Intermediate Shaft O-Ring

3306 301 016 - 2x Drain Plug / Oil Dipstick Sealing Ring

3306 301 014 - 4x Cover Gasket

3306 301 015 - 1x Shifting Cover Gasket

0634 301 833 - 1x Input Shaft Sealing Ring

0634 300 466 - 1x Output Shaft Sealing Ring

3306 304 029 - 2x Bearing / Gear Thrust Washer

3306 304 027 - 8x Clutch Pack for Inner Clutch Disc

3306 304 031 - 8x Clutch Pack for Outer Clutch Disc

3306 304 024 - 3x Disc Carrier Spring

3306 304 007 - 2x Output Shaft Key

3306 304 034 - 2x Cutch Pack Shim 0.30mm

3306 304 035 - 2x Cutch Pack Shim 0.40mm

3306 304 036 - 2x Cutch Pack Shim 0.50mm

3304 302 011 - 2x Input + Output Shaft Shim 0.10mm

3304 302 012 - 2x Input + Output Shaft Shim 0.15mm

3304 302 014 - 2x Input + Output Shaft Shim 0.30mm
