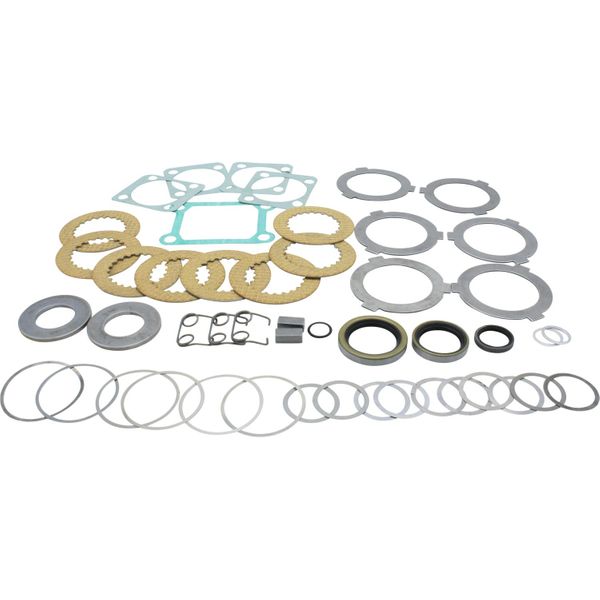

ZF 3304 199 004 Seal and Clutch Kit for ZF 10 M Gearbox

Part No: ZF-3304199004

Seal and clutch kit suitable for use with ZF 10 M gearboxes, and replaces ZF 947.62.631.01 and 500437. This is the ZF part number 3304 199 004 which should be serviced every 2 years / 2,000 hours. The seal and clutch kit contains the following items:

2 x Bearing / gear thrust washer, part number: 3304 304 019

8 x Clutch pack inner clutch plate, part number: 3304 304 040

6 x Clutch pack outer clutch plate, part number: 3304 304 021

2 x 0.15mm clutch pack shim, part number: 3304 304 029

2 x 0.2mm clutch pack shim, part number: 3304 304 030

2 x 0.3mm clutch pack shim, part number: 3304 304 031

2 x 0.4mm clutch pack shim, part number: 3304 304 032

2 x 0.5mm clutch pack shim, part number: 3304 304 033

4 x Cover gasket, part number: 3304 301 015

3 x Disc carrier spring, part number: 3306 304 024

2 x Drain plug / oil dipstick sealing ring, part number: 3306 301 016

1 x Input shaft sealing ring, part number: 0634 301 830

2 x 0.1mm input + output shaft shim, part number: 3304 302 011

2 x 0.15mm input + output shaft shim, part number: 3304 302 012

2 x 0.3mm input + output shaft shim, part number: 3304 302 014

1 x Intermediate shaft O-ring, part number: 0634 306 011

2 x Output shaft key, part number: 0631 501 634

1 x Output shaft sealing ring, part number: 0634 300 371

1 x Shift cover sealing ring, part number: 0634 502 009

1 x Shifting cover gasket, part number: 3306 301 015
