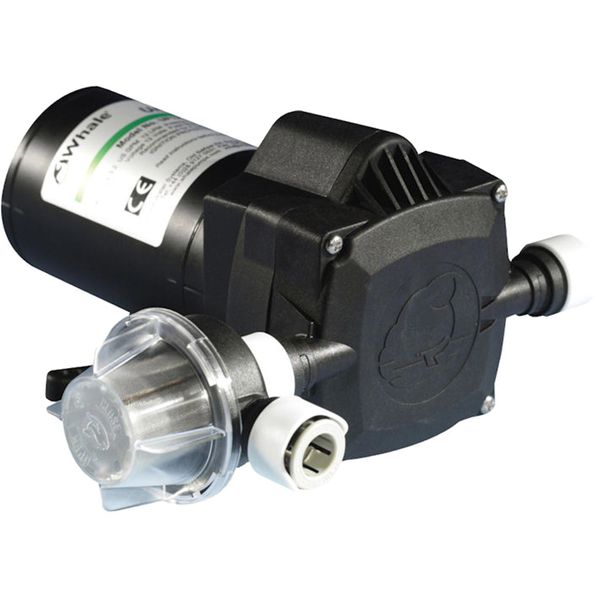

Whale Universal Water Pressure Pump (24V / 12 LPM / 45 PSI)
Whale Universal Water Pressure Pump (24V / 12 LPM / 45 PSI)
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Whale Universal Water Pressure Pump (24V / 12 LPM / 45 PSI)
Part No: W-UF1225
The Whale Universal water pressure pump provides smooth constant water flow thanks to a seamless 4 diaphragm design. The pump can perform constantly as it is undamaged by dry running. This water pump has rotating feet to easily fit existing fresh water or salt water pump systems. It runs quietly and efficiently and combines fantastic safety and reliability with high performance. A clear lid strainer is also included on the inlet which can be easily inspected and maintained.
Suitability for fresh water contact is assured because of the materials used, with only polypropylene, monprene, nitrile and stainless steel making contact with fluid. The rest of the pump is also made from robust materials, with a glass filled polypropylene pump body and an aluminium and powder-coated steel motor casing. All diaphragms, valves and feet are monprene, seals are nitrile and fasteners are all made from stainless steel. The Whale Universal pump range is EMC compliant, CE marked and features an ISO8846 rating for particle ingress.
The pump is recommended for supplying 3-4 outlets throughout the boat. These can include taps, showers and other domestic water outlets.
Approvals
EMC Compliant, CE Marked, ISO 8846 MARINE (Ignition)
Cut Out Pressure Description
45 PSI / 3.1 Bar
Flow Rate Description
12 LPM (3.2 US GPM)
Fuse
4A
Height Description
125mm (4.9")
Length
220mm (8.7")
Series
Universal
Supplied With
Strainer
Type
Fresh Water Pumps
Voltage Description
24V DC
Width
230mm (9")
Brand
Whale
Accumulator Recommended
Yes
Country of Origin
United Kingdom
Warranty
2 Years
Hose Size
13mm / 1/2"
Maximum Recommended Head
Discharge Head: 30 Metres (98 Feet)
Model
UF1225
Self Primes up to
3 Metres (9.8 Feet)
Wire Size
Minimum: 2.5mm² (13 AWG)
Inlet Outlet
Fittings for 15mm Whale Female Quick Connect and 13mm (1/2") BSP / ID Hose
Share
View full details
Whale Universal Water Pressure Pump (24V / 12 LPM / 45 PSI)
Part No: W-UF1225
The Whale Universal water pressure pump provides smooth constant water flow thanks to a seamless 4 diaphragm design. The pump can perform constantly as it is undamaged by dry running. This water pump has rotating feet to easily fit existing fresh water or salt water pump systems. It runs quietly and efficiently and combines fantastic safety and reliability with high performance. A clear lid strainer is also included on the inlet which can be easily inspected and maintained.
Suitability for fresh water contact is assured because of the materials used, with only polypropylene, monprene, nitrile and stainless steel making contact with fluid. The rest of the pump is also made from robust materials, with a glass filled polypropylene pump body and an aluminium and powder-coated steel motor casing. All diaphragms, valves and feet are monprene, seals are nitrile and fasteners are all made from stainless steel. The Whale Universal pump range is EMC compliant, CE marked and features an ISO8846 rating for particle ingress.
The pump is recommended for supplying 3-4 outlets throughout the boat. These can include taps, showers and other domestic water outlets.
| Approvals | EMC Compliant, CE Marked, ISO 8846 MARINE (Ignition) |
| Cut Out Pressure Description | 45 PSI / 3.1 Bar |
| Flow Rate Description | 12 LPM (3.2 US GPM) |
| Fuse | 4A |
| Height Description | 125mm (4.9") |
| Length | 220mm (8.7") |
| Series | Universal |
| Supplied With | Strainer |
| Type | Fresh Water Pumps |
| Voltage Description | 24V DC |
| Width | 230mm (9") |
| Brand | Whale |
| Accumulator Recommended | Yes |
| Country of Origin | United Kingdom |
| Warranty | 2 Years |
| Hose Size | 13mm / 1/2" |
| Maximum Recommended Head | Discharge Head: 30 Metres (98 Feet) |
| Model | UF1225 |
| Self Primes up to | 3 Metres (9.8 Feet) |
| Wire Size | Minimum: 2.5mm² (13 AWG) |
| Inlet Outlet | Fittings for 15mm Whale Female Quick Connect and 13mm (1/2") BSP / ID Hose |
