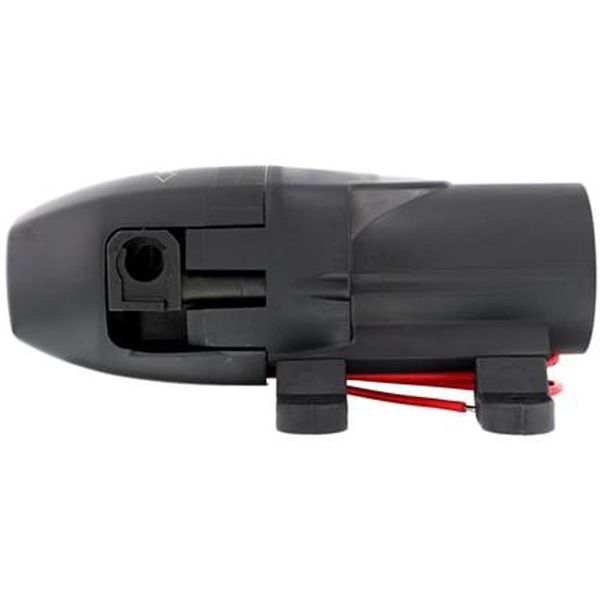

Jabsco 42630-3512 Par Max 1 Marine Pressure Pump (12V, 4 LPM, 35 PSI)
Jabsco 42630-3512 Par Max 1 Marine Pressure Pump (12V, 4 LPM, 35 PSI)
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Jabsco 42630-3512 Par Max 1 Marine Pressure Pump (12V, 4 LPM, 35 PSI)
Part No: JAB-42630-3512
The Jabsco Par Max 1 water pressure controlled pump is designed for vessels requiring a smooth low flow pump at an attractive low price.
Jabsco Par Max 1 water pressure pumps are internally grounded and have a two chamber diaphragm on demand pump with the performance characteristics to match the needs of a typical vessel with a shower, water heating and up to three faucets.
The water pressure pump is fitted with a built-in pulsation dampening by-pass to control unwanted cycling and noise. Quick connection fittings are included as standard for ease of pump installation.
Jabsco Par Max Pressure Pump Features & Benefits:
- Enclosed motor
- Integrated Pressure Switch
- Vibration & Noise reducing mounting
- Self‐priming
- Runs Dry without Damage
Approvals
CE, USCG 183.410, ISO 8846 (Ignition Protected), EMC/EMI, EN 61000-6-3 (residential, commercial, light industrial), RCM, WEEE
Cut In Pressure
22 PSI (1.5 bar)
Cut Out Pressure Description
35 PSI / 2.4 Bar
Flow Rate Description
3.8 LPM (1 US GPM)
Fuse
4A (order separately)
Height Description
68mm (2.68")
Length
165mm (6.5")
Material
Upper* and Lower Housing: Fibre reinforced polypropylene, Check Valve Retainer*: Polypropylene, Diaphragm*: Santoprene, Check Valves*, Switch diaphragm & PH Seals: EPDM, PH Fasteners: Stainless Steel, Slide-In Feet: Rubber, Motor Casing: Enclosed in protective plastic casing. (* in contact with water)
Series
Par Max 1
Temperature Range
0°C - 43°C (32ºF - 110ºF)
Type
Fresh Water Pumps
Voltage Description
12V DC (9V - 13.6V DC)
Weight
0.6 kg (1.4 lb)
Width
103mm (4")
Brand
Jabsco
Warranty
3 Years
Connections Description
2x 3/8" (10mm) or 2x 1/2" (13mm) bore hose barbs
Maximum Recommended Head
1.5 Metres
Model
42630-3512-3C
Replaces
WP-006, Jabsco 42630-2992-P, 42630-2900 & 42630-3992-P
Self Primes up to
1.8 Metres (5.9 Feet)
Wire Size
18 AWG (1mm2)
Amps Description
3.5A maximum at 35 PSI (2.4 Bar)
Share
View full details
Jabsco 42630-3512 Par Max 1 Marine Pressure Pump (12V, 4 LPM, 35 PSI)
Part No: JAB-42630-3512
The Jabsco Par Max 1 water pressure controlled pump is designed for vessels requiring a smooth low flow pump at an attractive low price.
Jabsco Par Max 1 water pressure pumps are internally grounded and have a two chamber diaphragm on demand pump with the performance characteristics to match the needs of a typical vessel with a shower, water heating and up to three faucets.
The water pressure pump is fitted with a built-in pulsation dampening by-pass to control unwanted cycling and noise. Quick connection fittings are included as standard for ease of pump installation.
Jabsco Par Max Pressure Pump Features & Benefits:
- Enclosed motor
- Integrated Pressure Switch
- Vibration & Noise reducing mounting
- Self‐priming
- Runs Dry without Damage
| Approvals | CE, USCG 183.410, ISO 8846 (Ignition Protected), EMC/EMI, EN 61000-6-3 (residential, commercial, light industrial), RCM, WEEE |
| Cut In Pressure | 22 PSI (1.5 bar) |
| Cut Out Pressure Description | 35 PSI / 2.4 Bar |
| Flow Rate Description | 3.8 LPM (1 US GPM) |
| Fuse | 4A (order separately) |
| Height Description | 68mm (2.68") |
| Length | 165mm (6.5") |
| Material | Upper* and Lower Housing: Fibre reinforced polypropylene, Check Valve Retainer*: Polypropylene, Diaphragm*: Santoprene, Check Valves*, Switch diaphragm & PH Seals: EPDM, PH Fasteners: Stainless Steel, Slide-In Feet: Rubber, Motor Casing: Enclosed in protective plastic casing. (* in contact with water) |
| Series | Par Max 1 |
| Temperature Range | 0°C - 43°C (32ºF - 110ºF) |
| Type | Fresh Water Pumps |
| Voltage Description | 12V DC (9V - 13.6V DC) |
| Weight | 0.6 kg (1.4 lb) |
| Width | 103mm (4") |
| Brand | Jabsco |
| Warranty | 3 Years |
| Connections Description | 2x 3/8" (10mm) or 2x 1/2" (13mm) bore hose barbs |
| Maximum Recommended Head | 1.5 Metres |
| Model | 42630-3512-3C |
| Replaces | WP-006, Jabsco 42630-2992-P, 42630-2900 & 42630-3992-P |
| Self Primes up to | 1.8 Metres (5.9 Feet) |
| Wire Size | 18 AWG (1mm2) |
| Amps Description | 3.5A maximum at 35 PSI (2.4 Bar) |
