Whale Orca 500 Submersible Bilge Pump (12V / 32 LPM / 19mm Hose)
Whale Orca 500 Submersible Bilge Pump (12V / 32 LPM / 19mm Hose)
Couldn't load pickup availability
Whale Orca 500 Submersible Bilge Pump (12V / 32 LPM / 19mm Hose)
Part No: W-BE0500

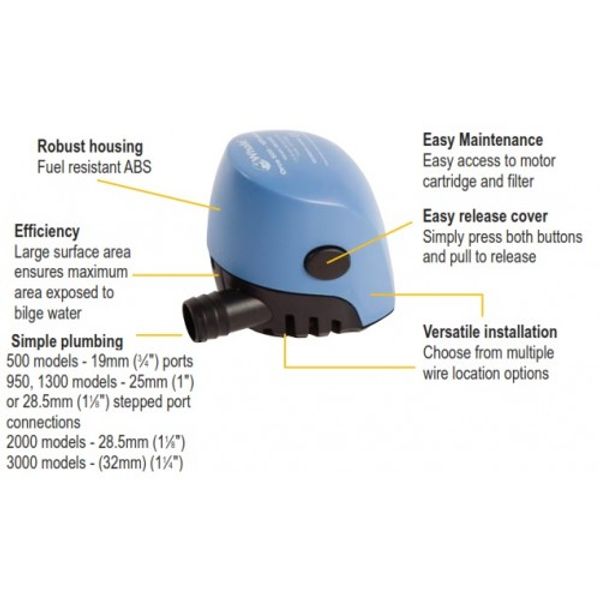

The BE0500 is a submersible electric bilge pump from the Whale Orca range. This is a range of compact and powerful pumps suitable for disposing of bilge water available with a wide selection of flow rates. The 500 is the smallest of the range, but still has a capacity of 500 US gallons per hour! These pumps are designed to be used in conjunction with a Whale electric float switch.
The Whale Orca range of pumps are compact in design but still feature a large surface area for maximum bilge water exposure. They feature a robust fuel resistant ABS housing which is easily released with two push buttons to allow easy access to the motor cartridge and filter area. Installation of the bilge pump is simple due to a choice of wire locations. The Whale Orca submersible bilge pump range is CE certified and meets ISO8849 marine specifications.
| Approvals | Meets ISO0849 Standard, CE Certified |
| Consumption | 1.5A |
| Flow Rate Description | 32 LPM |
| Flow Rate 1 Metre Head | 1703 LPH (450 US GPH) / 28 LPM (7.5 US GPM) |
| Fuse | 2A |
| Height Description | 83mm (3.3") |
| Outlet | 19mm (3/4") ID Hose |
| Voltage Description | 12V DC |
| Width | 102mm (4.3") |
| Brand | Whale |
| Automatic Bilge Pumps | No |
| Maximum Pump Head | 2.3 to 4.27 Metres |
| Warranty | 3 Years |
| Hose Size | 19mm / 3/4" |
| Maximum Recommended Head | 3 Metres (9.8 Feet) |
| Model | BE0500 |
| Wire Size | 1.5mm² (16 AWG) |
| Amps Description | 1.5A |
| Depth | 78.5mm (3.1") Diameter |
