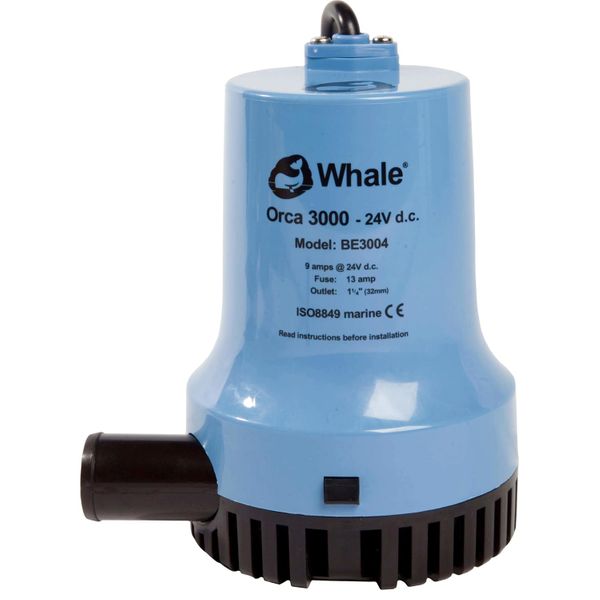

Whale Orca 3000 Submersible Bilge Pump (24V / 189 LPM / 32mm Hose)
Part No: W-BE3004
The BE3004 is a submersible electric bilge pump from the Whale Orca range. This is a range of compact and powerful pumps suitable for disposing of bilge water available with a wide selection of flow rates. The 3000 has a capacity of 3000 US gallons per hour! These pumps are designed to be used in conjunction with a Whale electric float switch.
The Whale Orca range of pumps are compact in design but still feature a large surface area for maximum bilge water exposure. They feature a robust fuel resistant ABS housing which is easily released with two push buttons to allow easy access to the motor cartridge and filter area. Installation of the bilge pump is simple and the 3000 series also has a self clearing feature to prevent cavitation. The Whale Orca submersible bilge pump range is CE certified and meets ISO8849 marine specifications.
| Approvals | Meets ISO0849 Standard, CE Certified |
| Flow Rate Description | 11340 LPH (3000 US GPH) / 189 LPM (50 US GPM) |
| Flow Rate 1 Metre Head | 10200 LPH (2700 US GPH) / 170 LPM (45 US GPM) |
| Fuse | 15A |
| Height Description | 195mm (7.7") |
| Material | ABS Pump Body with Nitrile Seals and Acetal Impeller |
| Outlet | 32mm (1-1/4") ID Hose |
| Series | Orca |
| Voltage Description | 24V DC |
| Width | 166mm (6.5") |
| Brand | Whale |
| Automatic Bilge Pumps | No |
| Maximum Pump Head | Over 4.27 Metres |
| Warranty | 3 Years |
| Hose Size | 32mm / 1-1/4" |
| Maximum Recommended Head | 4.6 Metres (15 Feet) |
| Model | BE3004 |
| Wire Size | 1.5mm² (16 AWG) |
| Amps Description | 9A |
| Depth | 132mm (5.1") |
