Whale Grey IC Pump & Manifold Waste Water Kit (19/25mm, 24V)
Whale Grey IC Pump & Manifold Waste Water Kit (19/25mm, 24V)
Regular price
£622.30 GBP
Regular price
£518.58 GBP
Sale price
£622.30 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Whale Grey IC Pump & Manifold Waste Water Kit (19/25mm, 24V)
Part No: W-WM8484

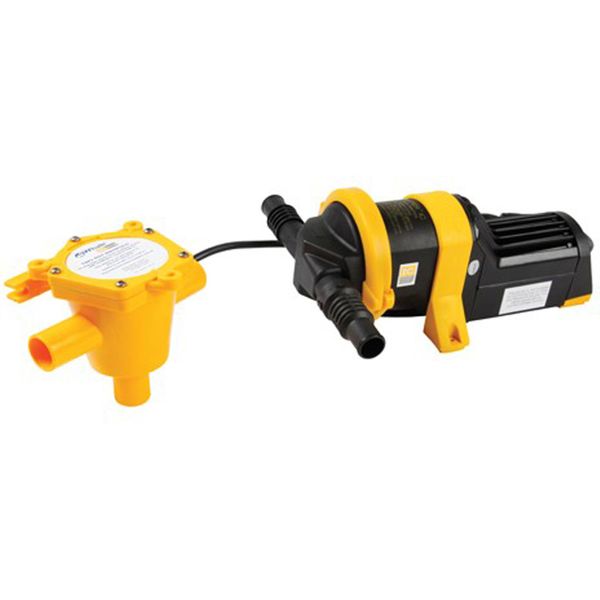

The Whale Grey IC kit includes a Whale Gulper 320 pump and an intelligent manifold to create a grey water disposal system. The two way manifold has Whale Intelligent Control built-in. The manifold accepts two waste inputs and senses water through the wall. This relays information to the Gulper IC pump to turn on and pump the waste water.
This Whale WM8484 Grey IC kit is supplied with 4 metres of cable and has connections for either 19mm (3/4") or 25mm (1") hose.
Approvals
ISO8846, IP45, CE Certified
Consumption
3.25A with 19mm Hose, 4A with 25mm Hose
Flow Rate Description
19 LPM (5 US Gallons), 1140 LPH (300 US Gallons)
Flow Rate 1 Metre Head
17.5 LPM (4.6 US Gallons), 1038 LPH (270 US Gallons)
Fuse
5A
Height Description
117mm
Length
280mm
Maximum Head and Lift
4 Metres
Minimum Cable Spec
1.5mm²
Voltage Description
24V DC
Width
198mm
Brand
Whale
Country of Origin
United Kingdom
Connections Description
19mm (3/4") / 25mm (1")
Maximum Recommended Head
3 Metres
Model
WM8484
Depth
102mm (4")
Share
View full details
Whale Grey IC Pump & Manifold Waste Water Kit (19/25mm, 24V)
Part No: W-WM8484
The Whale Grey IC kit includes a Whale Gulper 320 pump and an intelligent manifold to create a grey water disposal system. The two way manifold has Whale Intelligent Control built-in. The manifold accepts two waste inputs and senses water through the wall. This relays information to the Gulper IC pump to turn on and pump the waste water.
This Whale WM8484 Grey IC kit is supplied with 4 metres of cable and has connections for either 19mm (3/4") or 25mm (1") hose.
| Approvals | ISO8846, IP45, CE Certified |
| Consumption | 3.25A with 19mm Hose, 4A with 25mm Hose |
| Flow Rate Description | 19 LPM (5 US Gallons), 1140 LPH (300 US Gallons) |
| Flow Rate 1 Metre Head | 17.5 LPM (4.6 US Gallons), 1038 LPH (270 US Gallons) |
| Fuse | 5A |
| Height Description | 117mm |
| Length | 280mm |
| Maximum Head and Lift | 4 Metres |
| Minimum Cable Spec | 1.5mm² |
| Voltage Description | 24V DC |
| Width | 198mm |
| Brand | Whale |
| Country of Origin | United Kingdom |
| Connections Description | 19mm (3/4") / 25mm (1") |
| Maximum Recommended Head | 3 Metres |
| Model | WM8484 |
| Depth | 102mm (4") |
