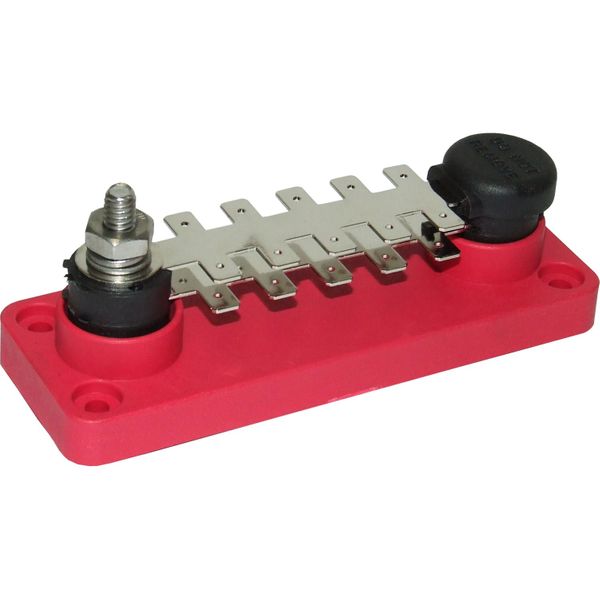

VTE Red Power Distribution Busbar (1 x 1/4" Post & 20 x 6.3mm Tabs)
VTE Red Power Distribution Busbar (1 x 1/4" Post & 20 x 6.3mm Tabs)
Regular price
£55.90 GBP
Regular price
£46.58 GBP
Sale price
£55.90 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Limited Stock - Call 01484 482269
VTE Red Power Distribution Busbar (1 x 1/4" Post & 20 x 6.3mm Tabs)
Part No: 729284
The tabbed power distribution bus bar is suitable for "push-on" type quick disconnect terminals.
The "push-on" type terminal type bus bar power distribution points greatly increase production speed and reduce labour costs. The bus bar provides a neat and simple solution for negative or positive cable distribution.
To meet ISO standards for protection of continuously energised terminals you should order a tab type bus bar cover kit.
The ASAP electrical range of tab type bus bar distribution points is available in 10, 20, or 30 points.
Approvals
Meets ISO Regulations Regarding Continuously Energised Terminals
Material
Stainless Steel Connection Post, Nickel Plated Brass Tab Plate, Glass Filled Nylon Base
Voltage Description
Max. 48V DC
Brand
VTE
Colour
Red
Connections Description
1 x 1/4" (6mm) Post, 20 x 6.3mm Male Spade Tabs
Amps Description
Maximum: 55A at 12V per tier, 20A per connection
Share
View full details
VTE Red Power Distribution Busbar (1 x 1/4" Post & 20 x 6.3mm Tabs)
Part No: 729284
The tabbed power distribution bus bar is suitable for "push-on" type quick disconnect terminals.
The "push-on" type terminal type bus bar power distribution points greatly increase production speed and reduce labour costs. The bus bar provides a neat and simple solution for negative or positive cable distribution.
To meet ISO standards for protection of continuously energised terminals you should order a tab type bus bar cover kit.
The ASAP electrical range of tab type bus bar distribution points is available in 10, 20, or 30 points.
| Approvals | Meets ISO Regulations Regarding Continuously Energised Terminals |
| Material | Stainless Steel Connection Post, Nickel Plated Brass Tab Plate, Glass Filled Nylon Base |
| Voltage Description | Max. 48V DC |
| Brand | VTE |
| Colour | Red |
| Connections Description | 1 x 1/4" (6mm) Post, 20 x 6.3mm Male Spade Tabs |
| Amps Description | Maximum: 55A at 12V per tier, 20A per connection |
