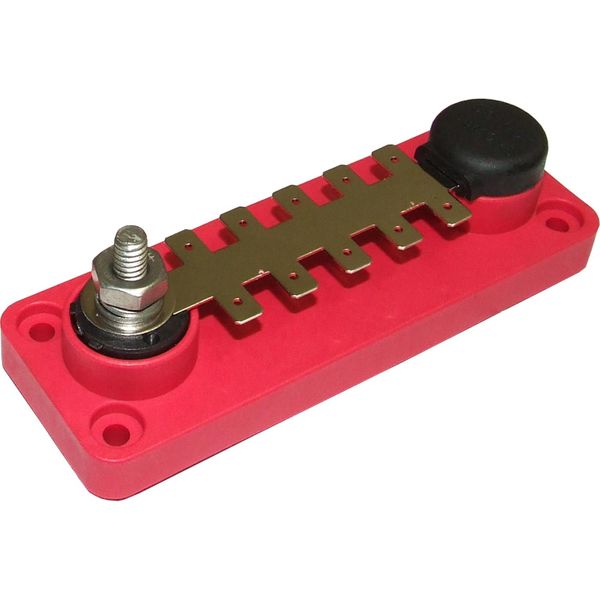

VTE Red Power Distribution Busbar (1 x 1/4" Post & 10 x 6.3mm Tabs)

Part No: 729282

VTE red 10 point tab type busbar / distribution point

For "push-on" type quick disconnect terminals.

These "push-on" type terminal type busbar power distribution points greatly increase production speed and reduce labour costs. They provide a neat and simple solution for negative or positive cable distribution.

- Max amperage: 55A @ 12V per tier, 20A per connection.

- Max voltage: 48V.

- Glass filled red nylon base, ideal for positive circuits.

- Single 1/4" (6mm) stainless connection post with nuts.

- Single nickel plated brass tab plate features ten (10) 6.3mm male spade tabs.

- Length: 124mm

- Width: 44mm

- Overall Height: 40mm

Order cover kit 729288 or 729289 to meet ISO standards for protection of continuously energised terminals.

The range of tabbed busbar distribution points are available in 10, 20 or 30 points.
