VTE 468 Red Battery Terminal Cover With 20.83mm Diameter Dual Entry

VTE 468 Red Battery Terminal Cover With 20.83mm Diameter Dual Entry

£5.88 GBP
£5.88 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

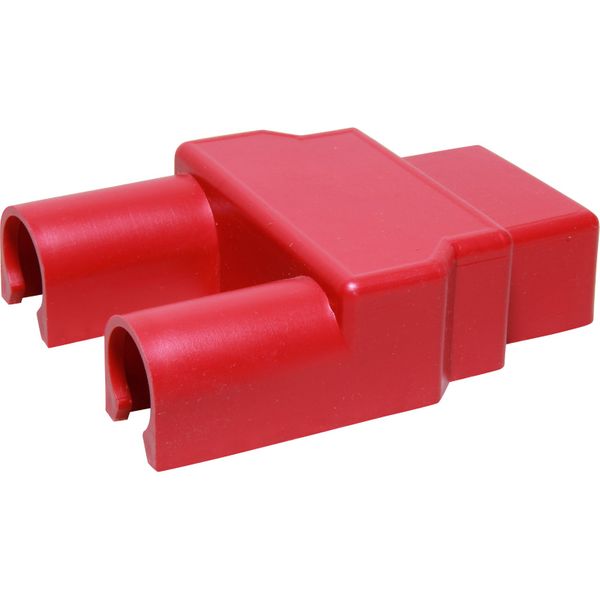

VTE 468 Red Battery Terminal Cover With 20.83mm Diameter Dual Entry



Part No: VTE-468D9V02

VTE Part Number: 468D9V02

From the VTE 468 series of battery terminal insulators. This terminal cover is made from PVC and is designed to protect terminal connections from short circuits. The 468 series are designed to look good as well as give protection to your electronics. The cover is suitable for a battery post terminal where the terminal is secured with a self tapping screw from the top, and it allows an eye terminal to be connected.

This battery terminal cover is colour coded red to signal a positive connection.

Using this terminal cover allows you to comply with ABYC E-9, USCG 33 Subpart I and ISO 10133 standards.



Approvals Complies With ABYC E-9, USCG 33 Subpart I & ISO 10133 Standards
Height Description 30.8mm
Length 111.9mm
Material PVC
Width 81.2mm
Brand VTE
Colour Red
Maximum Operating Temperature 105°C
Brittle Temperature -44°C
Cable Entry Size Description 20.83mm Dual Cable Entry
Cable Entry Point Dual
