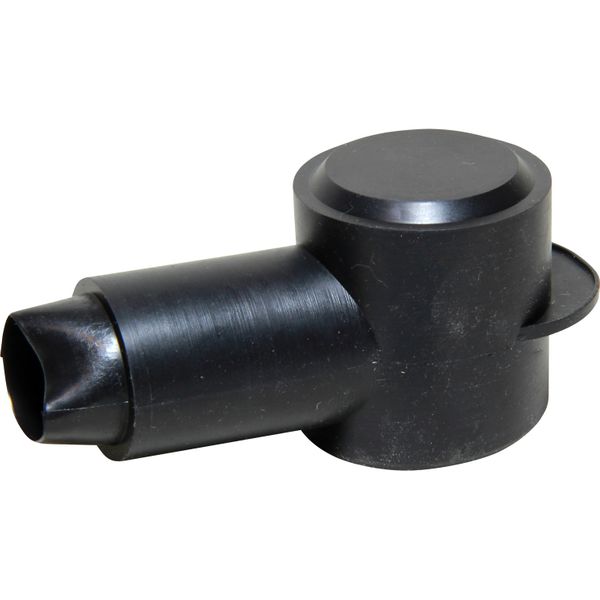

VTE 234 Cable Eye Terminal Cover (Black / 17.8mm Diameter Entry)

VTE 234 Cable Eye Terminal Cover (Black / 17.8mm Diameter Entry)

Regular price £8.89 GBP
Regular price Sale price £8.89 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

VTE 234 Cable Eye Terminal Cover (Black / 17.8mm Diameter Entry)



Part No: VTE-234N4V14

VTE Part Number: 234N4V14

From the VTE 234 series of eye terminal insulators. This terminal cover, made from non-flammable PVC, is designed to protect terminal connections from short circuits. The 234 series are designed to look good as well as give protection to your electronics.

This lug and ring terminal insulator is colour coded red to signal a positive connection.

Using this terminal cover allows you to comply with ABYC E-9, USCG 33 Subpart I and ISO 10133 standards.



Approvals Complies With ABYC E-9, USCG 33 Subpart I & ISO 10133 Standards.
Height Description 43.2mm
Length Terminal: 50.8mm, Overall: 94mm
Material PVC
Brand VTE
Colour Black
Maximum Operating Temperature 105°C
Brittle Temperature -44°C
Cable Entry Size Description 17.8mm (Cable Gauges 2/0-4/0)
Diameter Description Terminal OD: 34mm, Inside Grip Diameter: 22.86mm
Thickness Nominal Material Thickness: 2.54mm
