All About Boats

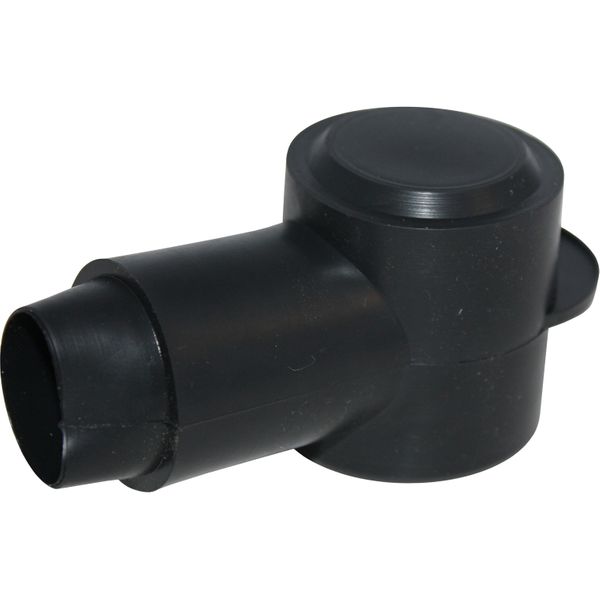

VTE 232 Cable Eye Terminal Cover (Black / 17.8mm Entry / F Grade)

VTE 232 Cable Eye Terminal Cover (Black / 17.8mm Entry / F Grade)

Regular price £13.14 GBP
Regular price Sale price £13.14 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

VTE 232 Cable Eye Terminal Cover (Black / 17.8mm Entry / F Grade)



Part No: VTE-232N4F14

VTE Part Number: 232N4F14

From the VTE 232 series of eye terminal insulators. This terminal cover, made from non-flammable PVC, is designed to protect terminal connections from short circuits. The 232 series are designed to look good as well as give protection to your electronics.

This lug and ring terminal insulator is colour coded black to signal a negative connection.

Using this terminal cover allows you to comply with ABYC E-9, USCG 33 Subpart I and ISO 10133 standards.



Approvals Complies With ABYC E-9, USCG 33 Subpart I & ISO 10133 Standards.
Height Description 40.7mm
Length Terminal: 44.45mm, Overall: 87.1mm
Material PVC
Brand VTE
Colour Black
Maximum Operating Temperature 105°C
Cable Entry Size Description 17.8mm (Cable Gauges 2/0-4/0)
Diameter Description Terminal OD: 32mm, Inside Grip Diameter: 22.86mm
Thickness Nominal Material Thickness: 2.54mm
