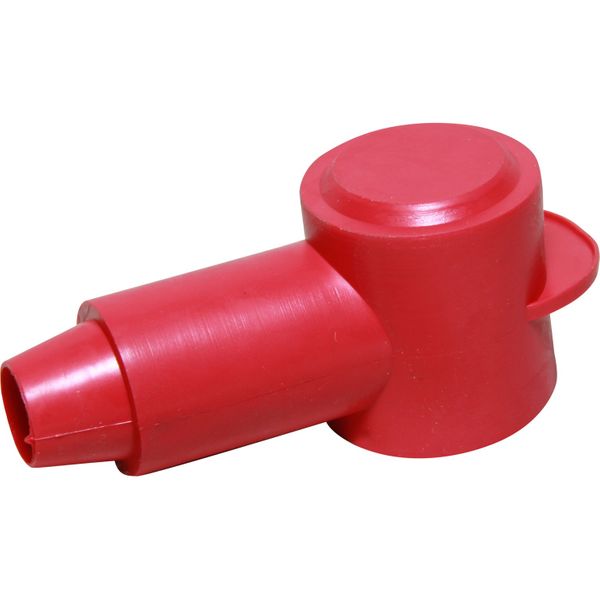

VTE 228 Red Cable Eye Terminal Cover 12.7mm Diameter Entry
VTE 228 Red Cable Eye Terminal Cover 12.7mm Diameter Entry
Regular price
£8.34 GBP
Regular price
£6.95 GBP
Sale price
£8.34 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Limited Stock - Call 01484 482269
VTE 228 Red Cable Eye Terminal Cover 12.7mm Diameter Entry
Part No: VTE-228N3V02
VTE Part Number: 228N3V02
From the VTE 228 series of eye terminal insulators. This terminal cover, made from PVC, is designed to protect terminal connections from short circuits. The 228 series are designed to look good as well as give protection to your electronics.
This lug and ring terminal insulator is colour coded red to signal a positive connection.
Using this terminal cover allows you to comply with ABYC E-9, USCG 33 Subpart I and ISO 10133 standards.
Approvals
Complies With ABYC E-9, USCG 33 Subpart I & ISO 10133 Standards.
Height Description
35.8mm
Length
Terminal: 44.45mm, Overall: 83.1mm
Material
PVC
Brand
VTE
Colour
Red
Maximum Operating Temperature
105°C
Brittle Temperature
-44°C
Cable Entry Size Description
12.7mm (Cable Gauges 2-2/0)
Diameter Description
Terminal OD: 28mm, Inside Grip Diameter: 19.05mm
Thickness
Nominal Material Thickness: 1.52mm
Share
View full details
VTE 228 Red Cable Eye Terminal Cover 12.7mm Diameter Entry
Part No: VTE-228N3V02
VTE Part Number: 228N3V02
From the VTE 228 series of eye terminal insulators. This terminal cover, made from PVC, is designed to protect terminal connections from short circuits. The 228 series are designed to look good as well as give protection to your electronics.
This lug and ring terminal insulator is colour coded red to signal a positive connection.
Using this terminal cover allows you to comply with ABYC E-9, USCG 33 Subpart I and ISO 10133 standards.
| Approvals | Complies With ABYC E-9, USCG 33 Subpart I & ISO 10133 Standards. |
| Height Description | 35.8mm |
| Length | Terminal: 44.45mm, Overall: 83.1mm |
| Material | PVC |
| Brand | VTE |
| Colour | Red |
| Maximum Operating Temperature | 105°C |
| Brittle Temperature | -44°C |
| Cable Entry Size Description | 12.7mm (Cable Gauges 2-2/0) |
| Diameter Description | Terminal OD: 28mm, Inside Grip Diameter: 19.05mm |
| Thickness | Nominal Material Thickness: 1.52mm |
