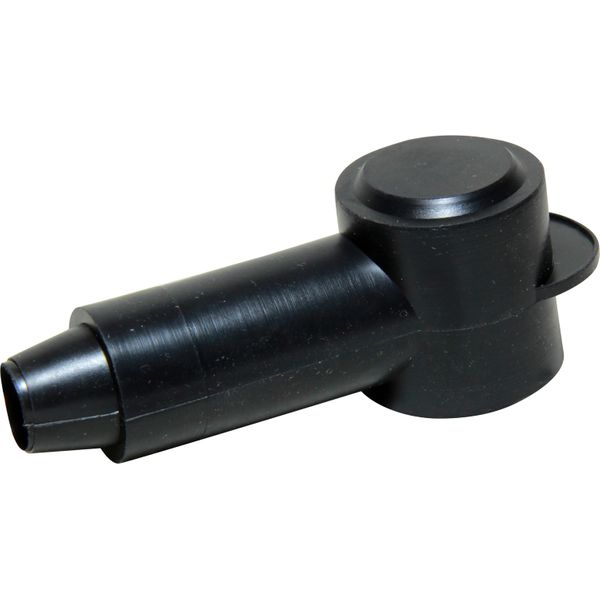

VTE 228 Black Cable Eye Terminal Cover (95.8mm Long / 12.7mm Entry)
Part No: VTE-228E3V14
VTE Part Number: 228E3V14
From the VTE 228 series of eye terminal insulators. This terminal cover, made from PVC, is designed to protect terminal connections from short circuits. The 228 series are designed to look good as well as give protection to your electronics.
This lug and ring terminal insulator is colour coded black to signal a negative connection.
Using this terminal cover allows you to comply with ABYC E-9, USCG 33 Subpart I and ISO 10133 standards.
| Approvals | Complies With ABYC E-9, USCG 33 Subpart I & ISO 10133 Standards. |
| Height Description | 35.8mm |
| Length | Terminal: 57.15mm, Overall: 95.8mm |
| Material | PVC |
| Brand | VTE |
| Colour | Black |
| Maximum Operating Temperature | 105°C |
| Brittle Temperature | -44°C |
| Cable Entry Size Description | 12.7mm (Cable Gauges 2-2/0) |
| Diameter Description | Terminal OD: 28mm, Inside Grip Diameter: 19.05mm |
| Thickness | Nominal Material Thickness: 2.29mm |
