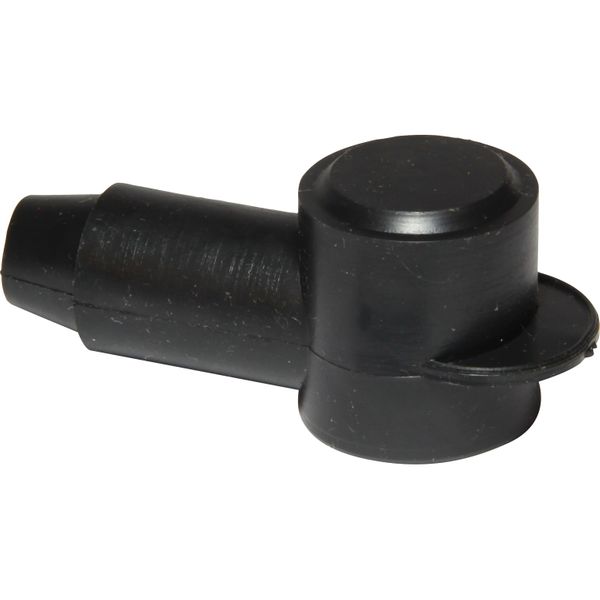

VTE 226 Cable Eye Terminal Cover (Black / 12.7mm Entry / F Grade)

VTE 226 Cable Eye Terminal Cover (Black / 12.7mm Entry / F Grade)

Regular price £9.06 GBP
Regular price Sale price £9.06 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

VTE 226 Cable Eye Terminal Cover (Black / 12.7mm Entry / F Grade)



Part No: VTE-226N3F14

VTE Part Number: 226N3F14

From the VTE 226 series of eye terminal insulators. This terminal cover, made from non-flammable PVC, is designed to protect terminal connections from short circuits. The 226 series are designed to look good as well as give protection to your electronics.

This lug and ring terminal insulator is colour coded black to signal a negative connection.

Using this terminal cover allows you to comply with ABYC E-9, USCG 33 Subpart I and ISO 10133 standards.



Approvals Complies With ABYC E-9, USCG 33 Subpart I & ISO 10133 Standards.
Height Description 33.8mm
Length Terminal: 41.15mm, Overall: 79mm
Material PVC
Brand VTE
Colour Black
Maximum Operating Temperature 105°C
Cable Entry Size Description 12.7mm (Cable Gauges 2-2/0)
Diameter Description Terminal OD: 26mm, Inside Grip Diameter: 17.78mm
Thickness Nominal Material Thickness: 2.03mm
