VTE 220 Black Cable Eye Terminal Cover With 12.7mm Entry (79.7mm Long)
VTE 220 Black Cable Eye Terminal Cover With 12.7mm Entry (79.7mm Long)
Regular price
£2.11 GBP
Regular price
Sale price
£2.11 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

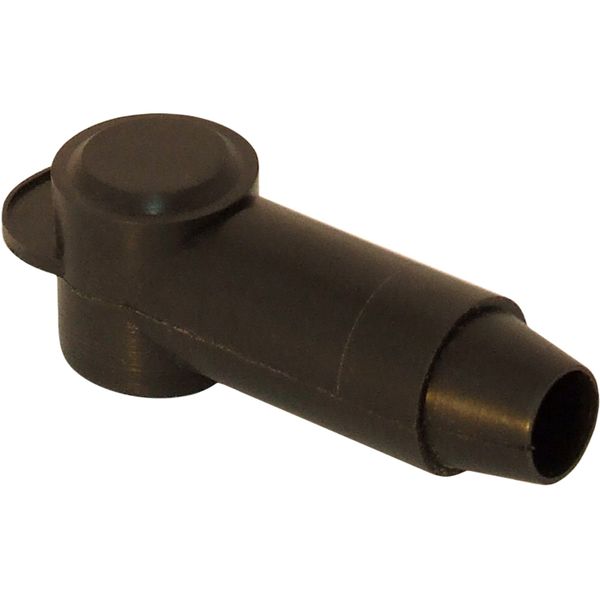

VTE 220 Black Cable Eye Terminal Cover With 12.7mm Entry (79.7mm Long)
Part No: VTE-220E3V14
VTE Part Number: 220E3V14
From the VTE 220 series of eye terminal insulators. This terminal cover, made from PVC, is designed to protect terminal connections from short circuits. The 220 series are designed to look good as well as give protection to your electronics.
This lug and ring terminal insulator is colour coded black to signal a negative connection.
Using this terminal cover allows you to comply with ABYC E-9, USCG 33 Subpart I and ISO 10133 standards.
| Approvals | Complies With ABYC E-9, USCG 33 Subpart I & ISO 10133 Standards. |
| Height Description | 25.9mm |
| Length | Terminal: 44.45mm, Overall: 79.7mm |
| Material | PVC |
| Brand | VTE |
| Colour | Black |
| Maximum Operating Temperature | 105°C |
| Brittle Temperature | -44°C |
| Cable Entry Size Description | 12.7mm (Cable Gauges 2-2/0) |
| Diameter Description | Terminal OD: 20mm, Inside Grip Diameter: 17.78mm |
| Thickness | Nominal Material Thickness: 1.78mm |
