VTE 218 Cable Eye Terminal Cover (Black / 7.6mm Diameter Entry)
Part No: VTE-218N2V14
VTE Part Number: 218N2V14

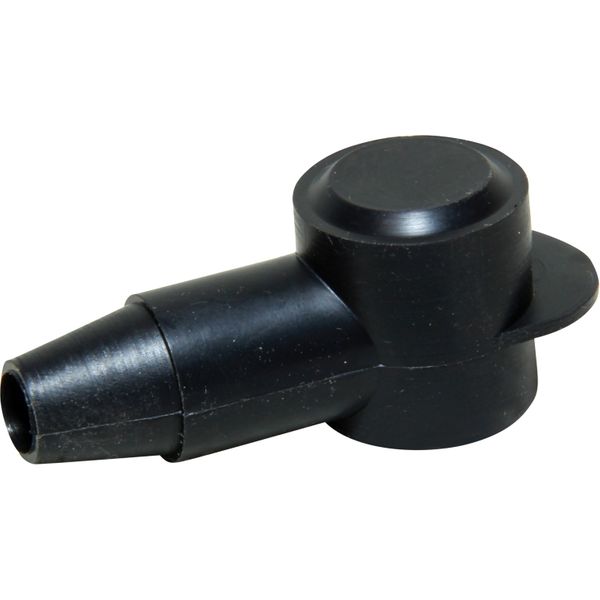

From the VTE 218 series of eye terminal insulators. This terminal cover, made from PVC, is designed to protect terminal connections from short circuits. The 218 series are designed to look good as well as give protection to your electronics.
This lug and ring terminal insulator is colour coded black to signal a negative connection.
Using this terminal cover allows you to comply with ABYC E-9, USCG 33 Subpart I and ISO 10133 standards.
Approvals | Complies With ABYC E-9, USCG 33 Subpart I & ISO 10133 Standards. |
Height Description | 23.6mm |
Length | Terminal: 25.4mm, Overall: 56.8mm |
Material | PVC |
Brand | VTE |
Colour | Black |
Maximum Operating Temperature | 105°C |
Brittle Temperature | -44°C |
Cable Entry Size Description | 7.6mm (Cable Gauges 8-2) |
Diameter Description | Terminal OD: 18mm, Inside Grip Diameter: 12.7mm |
Thickness | Nominal Material Thickness: 1.52mm |
