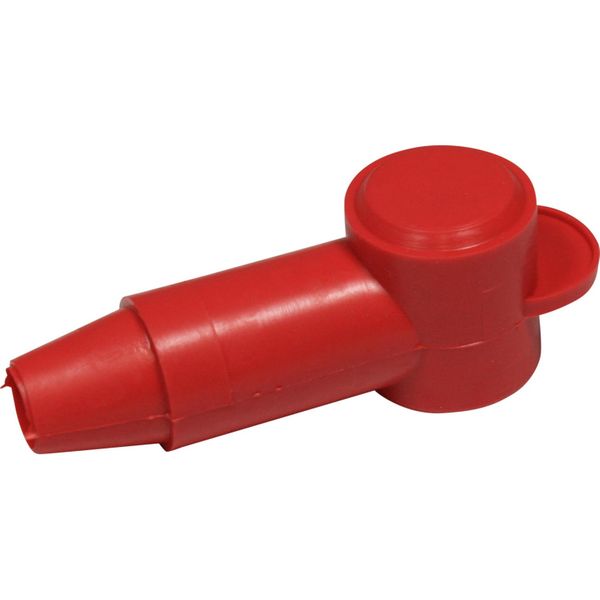

VTE 216 Red Cable Eye Terminal Cover (16mm Entry / 62.5mm Long)
Part No: VTE-216E2V02
VTE Part Number: 216E2V02
From the VTE 216 series of eye terminal insulators. This terminal cover is made from PVC and is designed to protect terminal connections from short circuits. The 216 series are designed to look good as well as give protection to your electronics.
This lug and ring terminal insulator is colour coded black to signal a negative connection.
Using this terminal cover allows you to comply with ABYC E-9, USCG 33 Subpart I and ISO 10133 standards.
| Approvals | Complies With ABYC E-9, USCG 33 Subpart I & ISO 10133 Standards. |
| Length | Overall: 62.5mm, Terminal: 31.75mm |
| Material | PVC |
| Brand | VTE |
| Colour | Red |
| Maximum Operating Temperature | 105°C |
| Brittle Temperature | -44°C |
| Cable Entry Size Description | 8 - 32mm (Cable Gauges 1 & 2) |
| Diameter Description | Terminal OD: 16.51mm, Inside Grip Diameter: 12.7mm |
| Thickness | Nominal Material Thickness: 1.52mm |
