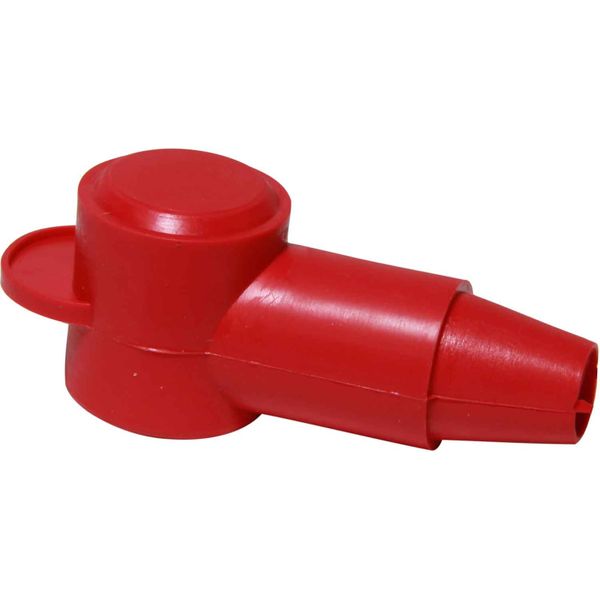

VTE 216 Cable Eye Terminal Cover (Red / 7.6mm Diameter Entry)
VTE 216 Cable Eye Terminal Cover (Red / 7.6mm Diameter Entry)
Regular price
£2.06 GBP
Regular price
Sale price
£2.06 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
VTE 216 Cable Eye Terminal Cover (Red / 7.6mm Diameter Entry)
Part No: 713808
VTE Part Number: 216N2V02
From the VTE 216 series of eye terminal insulators. This terminal cover, made from PVC, is designed to protect terminal connections from short circuits. The 216 series are designed to look good as well as give protection to your electronics.
This lug and ring terminal insulator is colour coded red to signal a positive connection.
Using this terminal cover allows you to comply with ABYC E-9, USCG 33 Subpart I and ISO 10133 standards.
| Approvals | Complies With ABYC E-9, USCG 33 Subpart I & ISO 10133 Standards. |
| Height Description | 21.8mm |
| Length | 58.9mm, Terminal: 25.4mm |
| Material | PVC |
| Brand | VTE |
| Colour | Red |
| Maximum Operating Temperature | 105°C |
| Brittle Temperature | -44°C |
| Cable Entry Size Description | 7.6mm (Cable Gauges 8-2) |
| Diameter Description | Terminal OD: 16mm, Inside Grip Diameter: 12.7mm |
| Thickness | Nominal Material Thickness: 1.52mm |
