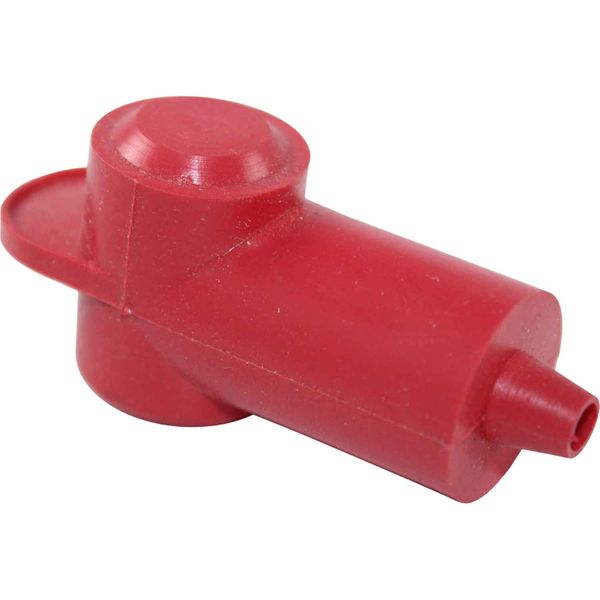

VTE 212 Cable Eye Terminal Cover (Red / 3.3mm Entry / 48.4mm Long)
Part No: 713800
VTE Part Number: 212N1V02
From the VTE 212 series of eye terminal insulators. This terminal cover, made from PVC, is designed to protect terminal connections from short circuits. The 212 series are designed to look good as well as give protection to your electronics.
This lug and ring terminal insulator is colour coded red to signal a positive connection.
Using this terminal cover allows you to comply with ABYC E-9, USCG 33 Subpart I and ISO 10133 standards.
| Approvals | Complies With ABYC E-9, USCG 33 Subpart I & ISO 10133 Standards. |
| Height Description | 21.3mm |
| Length | 48.4mm, Terminal: 25.4mm |
| Material | PVC |
| Brand | VTE |
| Colour | Red |
| Maximum Operating Temperature | 105°C |
| Brittle Temperature | -44°C |
| Cable Entry Size Description | 3.3mm (Cable Gauges 18-10) |
| Diameter Description | Terminal OD: 12mm, Inside Grip Diameter: 12.7mm |
| Thickness | Nominal Material Thickness: 1.52mm |
