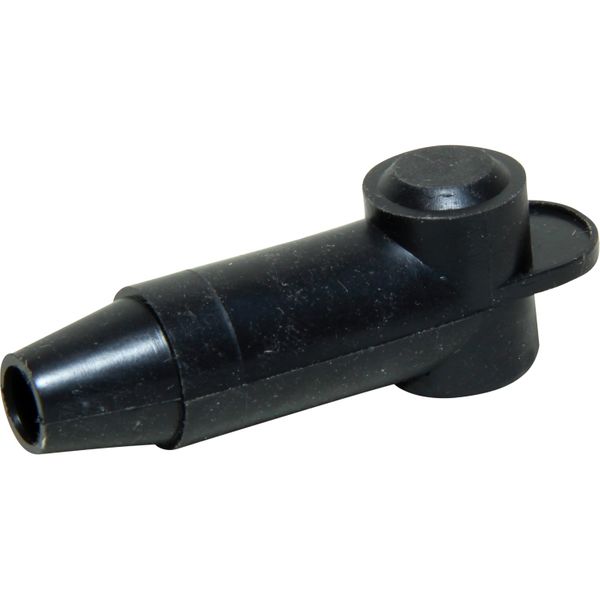

VTE 212 Black Cable Eye Terminal Cover (61.9mm Long / 7.6mm Entry)
VTE 212 Black Cable Eye Terminal Cover (61.9mm Long / 7.6mm Entry)
Regular price
£2.88 GBP
Regular price
Sale price
£2.88 GBP
Unit price
/
per
VTE 212 Black Cable Eye Terminal Cover (61.9mm Long / 7.6mm Entry)
Part No: VTE-212E2V14
VTE Part Number: 212E2V14
From the VTE 212 series of eye terminal insulators. This terminal cover, made from black PVC, is designed to protect terminal connections from short circuits. The 212 series are designed to look good as well as give protection to your electronics.
This lug and ring terminal insulator is colour coded black to signal a negative connection.
Using this terminal cover allows you to comply with ABYC E-9, USCG 33 Subpart I and ISO 10133 standards.
Approvals | Complies With ABYC E-9, USCG 33 Subpart I & ISO 10133 Standards. |
Height Description | 21.3mm |
Length | Terminal: 31.75mm, Overall: 61.9mm |
Material | PVC |
Brand | VTE |
Colour | Black |
Maximum Operating Temperature | 105°C |
Brittle Temperature | -44°C |
Cable Entry Size Description | 7.6mm (Cable Gauges 8-2) |
Diameter Description | Terminal OD: 12mm, Inside Grip Diameter: 12.7mm |
Thickness | Nominal Material Thickness: 1.52mm |
