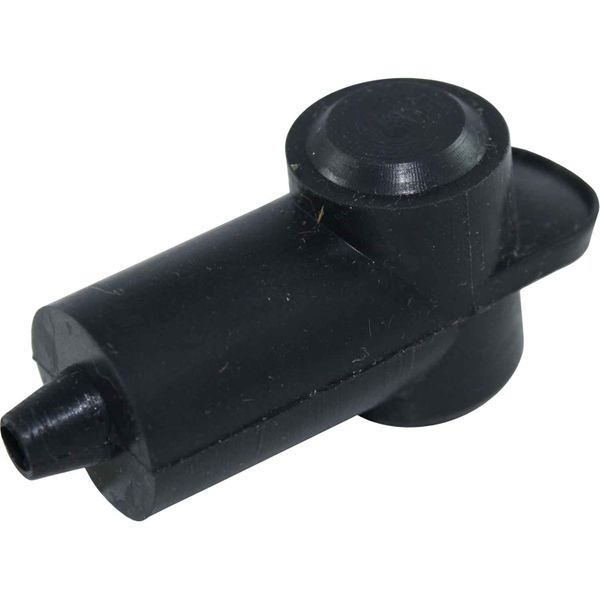

VTE 212 Black Cable Eye Terminal Cover (48.4mm Long / 3.3mm Entry)
VTE 212 Black Cable Eye Terminal Cover (48.4mm Long / 3.3mm Entry)
Regular price
£3.07 GBP
Regular price
£2.56 GBP
Sale price
£3.07 GBP
Taxes included.
Shipping calculated at checkout.
Limited Stock - Call 01484 482269
VTE 212 Black Cable Eye Terminal Cover (48.4mm Long / 3.3mm Entry)
Part No: 713801
VTE Part Number: 212N1V14
From the VTE 212 series of eye terminal insulators. This terminal cover, made from PVC, is designed to protect terminal connections from short circuits. The 212 series are designed to look good as well as give protection to your electronics.
This lug and ring terminal insulator is colour coded black to signal a negative connection.
Using this terminal cover allows you to comply with ABYC E-9, USCG 33 Subpart I and ISO 10133 standards.
Approvals
Complies With ABYC E-9, USCG 33 Subpart I & ISO 10133 Standards.
Height Description
21.3mm
Length
48.4mm, Terminal: 25.4mm
Material
PVC
Brand
VTE
Colour
Black
Maximum Operating Temperature
105°C
Brittle Temperature
-44°C
Cable Entry Size Description
3.3mm (Cable Gauges 18-10)
Diameter Description
Terminal OD: 12mm, Inside Grip Diameter: 12.7mm
Thickness
Nominal Material Thickness: 1.52mm
Share
View full details
VTE 212 Black Cable Eye Terminal Cover (48.4mm Long / 3.3mm Entry)
Part No: 713801
VTE Part Number: 212N1V14
From the VTE 212 series of eye terminal insulators. This terminal cover, made from PVC, is designed to protect terminal connections from short circuits. The 212 series are designed to look good as well as give protection to your electronics.
This lug and ring terminal insulator is colour coded black to signal a negative connection.
Using this terminal cover allows you to comply with ABYC E-9, USCG 33 Subpart I and ISO 10133 standards.
| Approvals | Complies With ABYC E-9, USCG 33 Subpart I & ISO 10133 Standards. |
| Height Description | 21.3mm |
| Length | 48.4mm, Terminal: 25.4mm |
| Material | PVC |
| Brand | VTE |
| Colour | Black |
| Maximum Operating Temperature | 105°C |
| Brittle Temperature | -44°C |
| Cable Entry Size Description | 3.3mm (Cable Gauges 18-10) |
| Diameter Description | Terminal OD: 12mm, Inside Grip Diameter: 12.7mm |
| Thickness | Nominal Material Thickness: 1.52mm |
