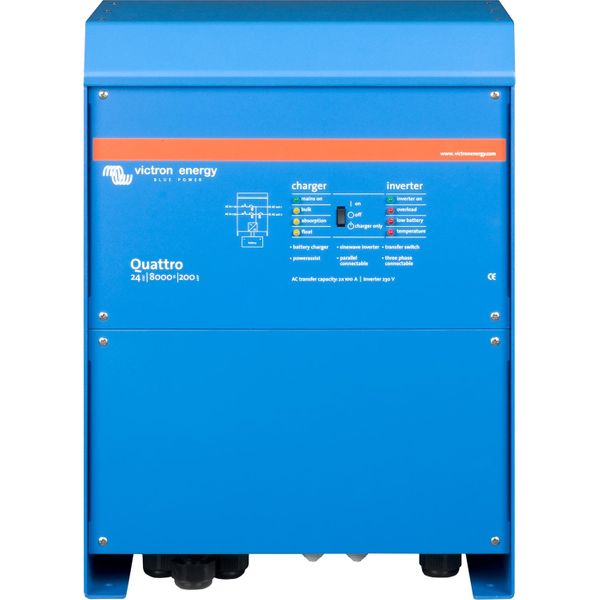

Victron Quattro Inverter/Charger (24V / 8000VA)

Part No: VC-QUA248020010

The Victron Quattro is a combined power inverter and battery charger in one unit. The QUA248020010 is suitable for charging 24 volt batteries from 187-265V AC input, as well as producing a true sine wave 230V AC output from these 24 volt batteries.

This model features two AC inputs, with an integrated transfer switch, and two AC outputs. One of the outputs is only live when AC is available on one of the inputs, so this can be used for appliances where draining the battery would not be desirable. When connected to shore power or a generator, the Quattro will draw a large current and use it to power any AC loads connected to the output side. Any leftover power will then be used for charging batteries, while protecting the supply side from overloading. If there are periods where AC load exceeds the input power, either by adding more appliances or by the input power being disconnected, the multi will switch to battery power within 20 milliseconds, so fast that electronic equipment will continue to operate without any disruption.

If more power is required, up to 6 Victron MultiPlus units can be used in parallel operation. Each unit also features protections against problems such as short circuits, over / under voltage, high temperatures etc to prevent failure. Monitoring and controlling your Victron MultiPlus is easy too, through the Color Control GX, the Venus GX or any smartphone/tablet or computer with internet connection.

Inverter:

Input Voltage Range (V DC): 19V - 33V

Output: Output voltage: 230VAC ± 2% / Frequency: 50Hz ± 0,1%

Cont. output power at 25°C: 6500W

Cont. output power at 40°C: 5500W

Cont. output power at 65°C: 3600W

Peak power: 16000W

Maximum efficiency: 94%

Zero-load power: 45W

Zero-load power in AES mode: 30W

Zero-load power in search mode: 10W

Charger:

Charge voltage 'absorption': 28.8V

Charge voltage 'float': 27.6V

Storage mode: 26.4V

Charge current house battery: 200A

Charge current starter battery: 4A

Battery temperature sensor: Yes
