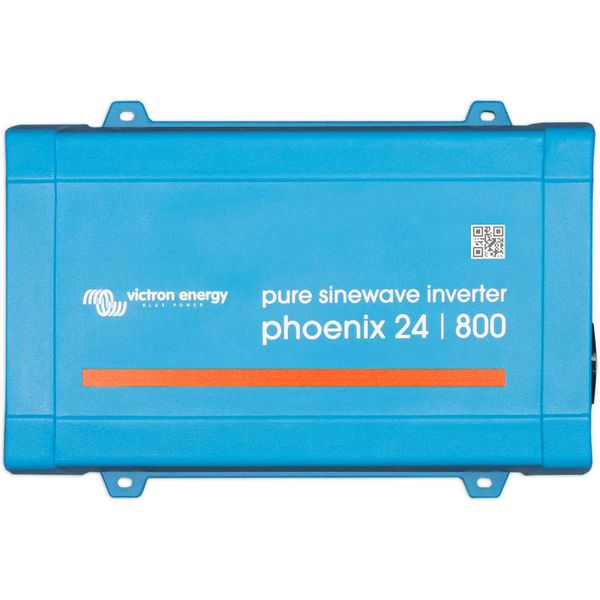

Victron Phoenix VE.Direct Sine Wave Inverter (24V / 800VA)
Victron Phoenix VE.Direct Sine Wave Inverter (24V / 800VA)
Couldn't load pickup availability
Victron Phoenix VE.Direct Sine Wave Inverter (24V / 800VA)
Part No: VC-PIN241800400
The Victron Phoenix inverter is a power inverter designed with high efficiency and performance in mind. It uses true sine wave Alternating Current to exactly replicate domestic current, allowing the use of 230V appliances off a 24 volt leisure battery. It protects against overheating and are short circuit proof, making them perfect for use in the marine and automotive industries.
These inverters feature a VE.Direct communication port, which can be used to connect the inverter to a PC or laptop (with the VE.Bus to USB interface) or to an Apple or Android smart phone (with a VE.Direct Bluetooth Smart dongle). These devices can then control and monitor the inverter and allows the adjustment of parameters and settings such as output voltage/frequency, low battery voltage settings and ECO mode settings.
This model is the PIN241800400 which has a continuous power output rating of 800VA at 25°C.
| Approvals | EN-IEC 60335-1 / EN-IEC 62109-1, EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3, ECE R10-4 |
| Height Description | 105mm (4.1") |
| Operating Temperature | -40°C to +65°C |
| Voltage Description | Input: 18.4V - 34V DC, Output: 230V or 120V AC ± 3% |
| Wattage | Output @ 25°C: 650W, Output @ 40°C: 560W |
| Width | 216mm |
| Brand | Victron |
| Style | Sine Wave Inverter |
| Connections Description | Battery: screw terminals, Output connection: 230V UK (BS 1363) socket |
| Frequency Description | Output: 50Hz or 60Hz ± 0.1% |
| Model | Phoenix 24/800 |
| Depth | 305mm (12") |
