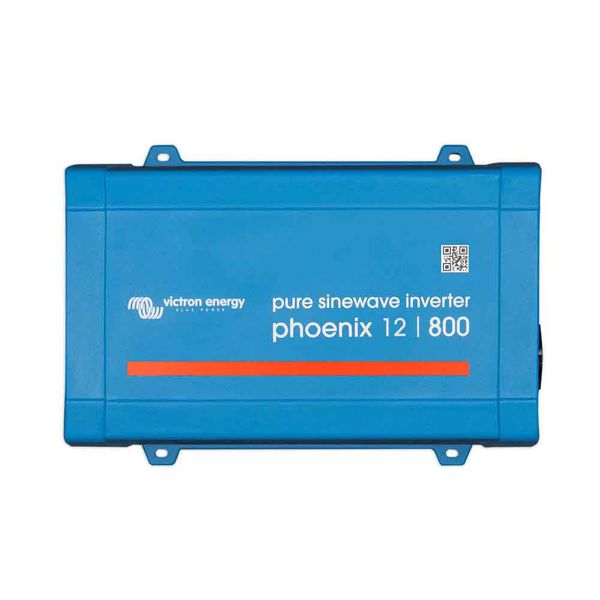

Victron Phoenix VE.Direct Sine Wave Inverter (12V / 800VA)

Part No: VC-PIN121801400

Victron's Phoenix inverters are suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load. This is the latest version which includes a VE Direct communication port.

Replaces Victron PIN121800400 Phoenix Inverter (VV-025)

- 12V Input

- 1500 Watt Peak Power

- 800 Watt / 350 VA Continuous

Key Features Include:

Low battery voltage alarm trip and reset levels

Low battery voltage cut-off and restart levels

Dynamic cut-off: load dependent cut-off level

Output voltage 210 - 245V

Frequency 50 Hz or 60 Hz

ECO mode on/off and ECO mode sense level

The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
