Victron Phoenix Sine Wave Inverter (24V / 2000VA)
Victron Phoenix Sine Wave Inverter (24V / 2000VA)
Couldn't load pickup availability
Victron Phoenix Sine Wave Inverter (24V / 2000VA)
Part No: VC-PIN242200000

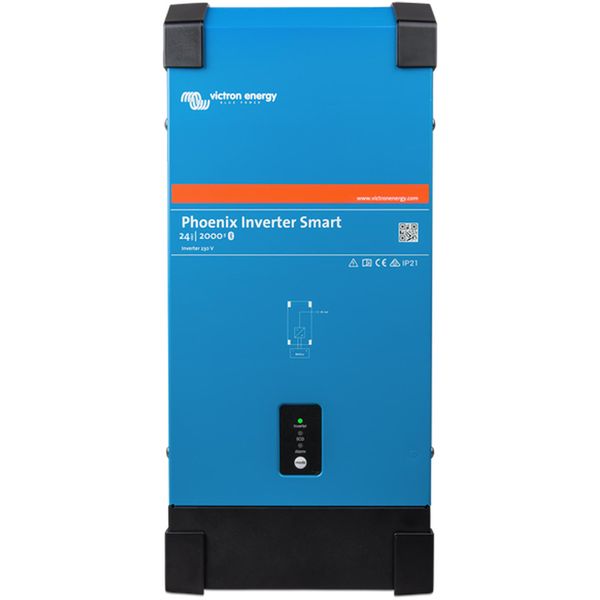

The Victron Phoenix Smart inverter is a power inverter designed with high efficiency and performance in mind. It uses true sine wave Alternating Current to exactly replicate domestic current, allowing the use of 230V appliances off a 24 volt leisure battery. It is also compact and lightweight, making it perfect for use in the marine and automotive industries.
These inverters feature an RS-485 communication port, which can be used to connect the inverter to a PC or laptop (with the VE.Bus to USB interface and by downloading VEConfigure software from the Victron website). This device can then control the inverter and allows the adjustment of parameters and settings such as output voltage/frequency, over and under voltage settings and relay settings.
This model is the PIN242200000 which has a continuous power output rating of 2000VA at 25°C.
| Approvals | EN 60335-1, EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 & ECE R10-5 |
| Connection [AC] | Hard wired |
| Efficiency | 94% |
| Height Description | 485mm (19.1") |
| Operating Temperature | -40ºC to +65ºC (fan assisted cooling) |
| Voltage Description | 24V DC Input, 230V AC Output |
| Wattage | Zero Load: 9W, Zero Load in ECO: 1.3W |
| Weight | 13kg |
| Width | 219mm |
| Brand | Victron |
| Optional Remote Panel | Remote on/off, app, VE direct |
| Cables Included | No |
| Output Frequency [Hz] | 50 |
| Output Power [W] Continuous | 2000 |
| Output Power [W] Peak | 4000 |
| Waveform | True Sine Wave |
| Connection [DC] | M8 stud |
| Depth | 125mm (4.9") |
