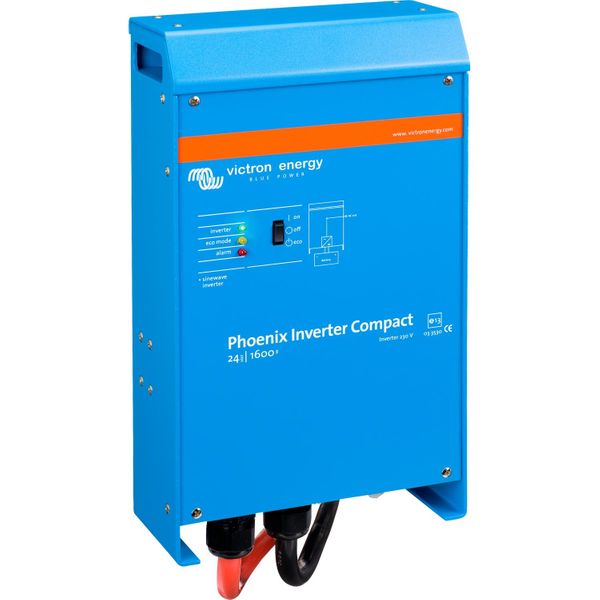

Victron Phoenix Compact Sine Wave Inverter (24V / 1600VA)
Victron Phoenix Compact Sine Wave Inverter (24V / 1600VA)
Couldn't load pickup availability
Victron Phoenix Compact Sine Wave Inverter (24V / 1600VA)
Part No: VC-CIN241620000
The Victron Phoenix inverter is a power inverter designed with high efficiency and performance in mind. It uses true sine wave Alternating Current to exactly replicate domestic current, allowing the use of 230V appliances off a 24 volt leisure battery. It is also compact and lightweight, making it perfect for use in the marine and automotive industries.
These inverters feature an RS-485 communication port, which can be used to connect the inverter to a PC or laptop (with the VE.Bus to USB interface and by downloading VEConfigue software from the Victron website). This device can then control the inverter and allows the adjustment of parameters and settings such as output voltage/frequency, over and under voltage settings and relay settings.
This model is the CIN241620000 which has a continuous power output rating of 1600VA at 25°C.
| Approvals | EN 60335-1, EN 55014-1 / EN 55014-2 |
| Height Description | 375mm |
| Operating Temperature | -40°C to +65°C |
| Voltage Description | Input: 19V - 33V DC, Output: 230V AC ± 2% |
| Wattage | Output @ 25°C: 1300W, Output @ 40°C: 1200W, Output @ 65°C: 800W |
| Width | 214mm |
| Brand | Victron |
| Style | Sine Wave Inverter |
| Connections Description | Battery: 1.5m battery cable, Output connection: G-ST18i plug |
| Frequency Description | Output: 50Hz ± 0.1% |
| Model | Phoenix C24/1600 |
| Depth | 110mm |
