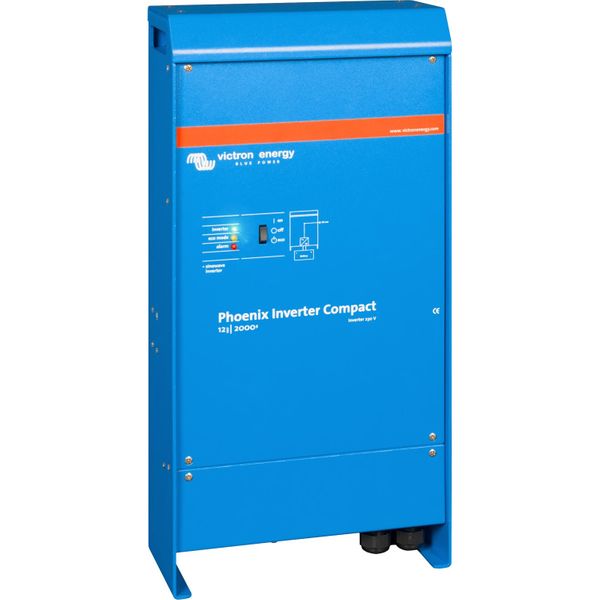

Victron Phoenix Compact Sine Wave Inverter (12V / 2000VA)
Victron Phoenix Compact Sine Wave Inverter (12V / 2000VA)
Limited Stock - Call 01484 482269
Victron Phoenix Compact Sine Wave Inverter (12V / 2000VA)
Part No: VC-CIN122200000
The Victron Phoenix inverter is a power inverter designed with high efficiency and performance in mind. It uses true sine wave Alternating Current to exactly replicate domestic current, allowing the use of 230V appliances off a 12 volt leisure battery. It is also compact and lightweight, making it perfect for use in the marine and automotive industries.
These inverters feature an RS-485 communication port, which can be used to connect the inverter to a PC or laptop (with the VE.Bus to USB interface and by downloading VEConfigue software from the Victron website). This device can then control the inverter and allows the adjustment of parameters and settings such as output voltage/frequency, over and under voltage settings and relay settings.
This model is the CIN122200000 which has a continuous power output rating of 2000VA at 25°C
This part replaces CIN122020000.
Approvals
EN 60335-1, EN 55014-1 / EN 55014-2
Height Description
520mm
Operating Temperature
-40°C to +65°C
Voltage Description
Input: 9.5V - 17V DC, Output: 230V AC ± 2%
Wattage
Output @ 25°C: 1600W, Output @ 40°C: 1450W, Output @ 65°C: 1000W
Width
255mm
Brand
Victron
Style
Sine Wave Inverter
Connections Description
Battery: M8 bolts, Output connection: Spring-clamp
Frequency Description
Output: 50Hz ± 0.1%
Model
Phoenix C12/2000
Replaces
CIN122020000
Depth
125mm (4.9")
Share
View full details
Victron Phoenix Compact Sine Wave Inverter (12V / 2000VA)
Part No: VC-CIN122200000
The Victron Phoenix inverter is a power inverter designed with high efficiency and performance in mind. It uses true sine wave Alternating Current to exactly replicate domestic current, allowing the use of 230V appliances off a 12 volt leisure battery. It is also compact and lightweight, making it perfect for use in the marine and automotive industries.
These inverters feature an RS-485 communication port, which can be used to connect the inverter to a PC or laptop (with the VE.Bus to USB interface and by downloading VEConfigue software from the Victron website). This device can then control the inverter and allows the adjustment of parameters and settings such as output voltage/frequency, over and under voltage settings and relay settings.
This model is the CIN122200000 which has a continuous power output rating of 2000VA at 25°C
This part replaces CIN122020000.
| Approvals | EN 60335-1, EN 55014-1 / EN 55014-2 |
| Height Description | 520mm |
| Operating Temperature | -40°C to +65°C |
| Voltage Description | Input: 9.5V - 17V DC, Output: 230V AC ± 2% |
| Wattage | Output @ 25°C: 1600W, Output @ 40°C: 1450W, Output @ 65°C: 1000W |
| Width | 255mm |
| Brand | Victron |
| Style | Sine Wave Inverter |
| Connections Description | Battery: M8 bolts, Output connection: Spring-clamp |
| Frequency Description | Output: 50Hz ± 0.1% |
| Model | Phoenix C12/2000 |
| Replaces | CIN122020000 |
| Depth | 125mm (4.9") |
