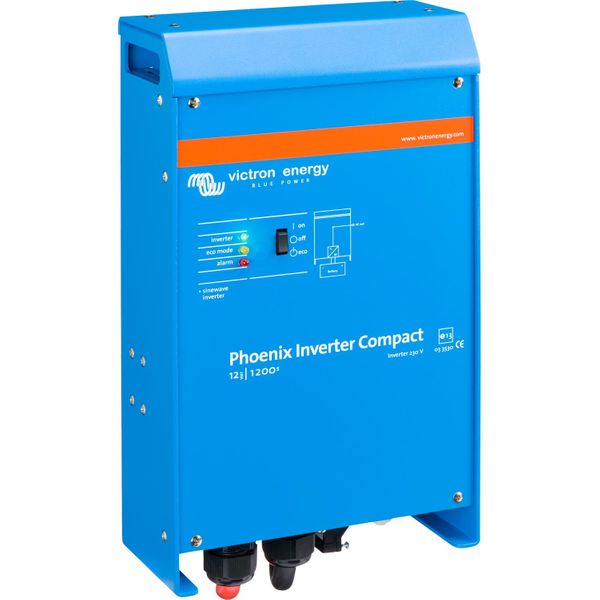

Victron Phoenix Compact Sine Wave Inverter (12V / 1200VA)
Victron Phoenix Compact Sine Wave Inverter (12V / 1200VA)
Limited Stock - Call 01484 482269
Victron Phoenix Compact Sine Wave Inverter (12V / 1200VA)
Part No: VC-CIN121220000
The Victron Phoenix inverter is a power inverter designed with high efficiency and performance in mind. It uses true sine wave Alternating Current to exactly replicate domestic current, allowing the use of 230V appliances off a 12 volt leisure battery. It is also compact and lightweight, making it perfect for use in the marine and automotive industries.
These inverters feature an RS-485 communication port, which can be used to connect the inverter to a PC or laptop (with the VE.Bus to USB interface and by downloading VEConfigue software from the Victron website). This device can then control the inverter and allows the adjustment of parameters and settings such as output voltage/frequency, over and under voltage settings and relay settings.
This model is the CIN121220000 which has a continuous power output rating of 1200VA at 25°C.
Approvals
EN 60335-1, EN 55014-1 / EN 55014-2
Connection [AC]
ST-18i plug
Efficiency
0.92
Height Description
375mm
Operating Temperature
-40°C to +65°C
Rating
IP20
Voltage Description
Input: 9.5V - 17V DC, Output: 230V AC ± 2%
Wattage
Output @ 25°C: 1000W, Output @ 40°C: 900W, Output @ 65°C: 600W
Weight
10kg
Width
214mm
Brand
Victron
Style
Sine Wave Inverter
Connections Description
Battery: 1.5m battery cable, Output connection: G-ST18i plug
Frequency Description
Output: 50Hz ± 0.1%
Model
Phoenix C12/1200
Optional Remote Panel
Yes
Cables Included
Yes, 1.5M DC
Output Frequency [Hz]
50
Output Power [W] Continuous
1000
Output Power [W] Peak
2400
Waveform
True Sine Wave
Connection [DC]
10mm ring terminal
Depth
110mm
Share
View full details
Victron Phoenix Compact Sine Wave Inverter (12V / 1200VA)
Part No: VC-CIN121220000
The Victron Phoenix inverter is a power inverter designed with high efficiency and performance in mind. It uses true sine wave Alternating Current to exactly replicate domestic current, allowing the use of 230V appliances off a 12 volt leisure battery. It is also compact and lightweight, making it perfect for use in the marine and automotive industries.
These inverters feature an RS-485 communication port, which can be used to connect the inverter to a PC or laptop (with the VE.Bus to USB interface and by downloading VEConfigue software from the Victron website). This device can then control the inverter and allows the adjustment of parameters and settings such as output voltage/frequency, over and under voltage settings and relay settings.
This model is the CIN121220000 which has a continuous power output rating of 1200VA at 25°C.
| Approvals | EN 60335-1, EN 55014-1 / EN 55014-2 |
| Connection [AC] | ST-18i plug |
| Efficiency | 0.92 |
| Height Description | 375mm |
| Operating Temperature | -40°C to +65°C |
| Rating | IP20 |
| Voltage Description | Input: 9.5V - 17V DC, Output: 230V AC ± 2% |
| Wattage | Output @ 25°C: 1000W, Output @ 40°C: 900W, Output @ 65°C: 600W |
| Weight | 10kg |
| Width | 214mm |
| Brand | Victron |
| Style | Sine Wave Inverter |
| Connections Description | Battery: 1.5m battery cable, Output connection: G-ST18i plug |
| Frequency Description | Output: 50Hz ± 0.1% |
| Model | Phoenix C12/1200 |
| Optional Remote Panel | Yes |
| Cables Included | Yes, 1.5M DC |
| Output Frequency [Hz] | 50 |
| Output Power [W] Continuous | 1000 |
| Output Power [W] Peak | 2400 |
| Waveform | True Sine Wave |
| Connection [DC] | 10mm ring terminal |
| Depth | 110mm |
