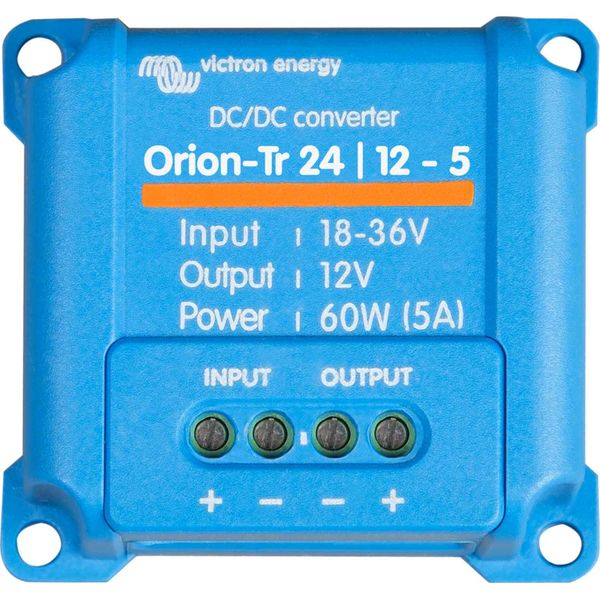

Victron Orion-Tr Voltage Converter (24V - 12V DC / 5A)

Victron Orion-Tr Voltage Converter (24V - 12V DC / 5A)

Regular price £20.16 GBP
Regular price Sale price £20.16 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Victron Orion-Tr Voltage Converter (24V - 12V DC / 5A)



Part No: VC-ORI241205200

The Victron Orion-TR voltage dropper is designed to convert an input voltage of 24V DC (in fact anywhere between 18V and 35V DC) into a 12V DC output for use on most electrical items on board boats, motorhomes and other automotive applications. The converter is protected to IP43 and is easy to install with no special tools needed. They are very efficient, running above 95% efficiency due to the use of active rectification (also known as synchronous rectification).
Approvals EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-4 & CE
Height Description 53mm (2.09")
Length 27mm
Voltage Description Input Voltage Range: 18-35V DC, Output Voltage: 12.7V DC
Wattage 60W
Width 51mm
Brand Victron
Cable Conductor Cross Section Description 3.3mm² (12 AWG)
Amps Description Continuous output: 5A, Maximum output: 7A
