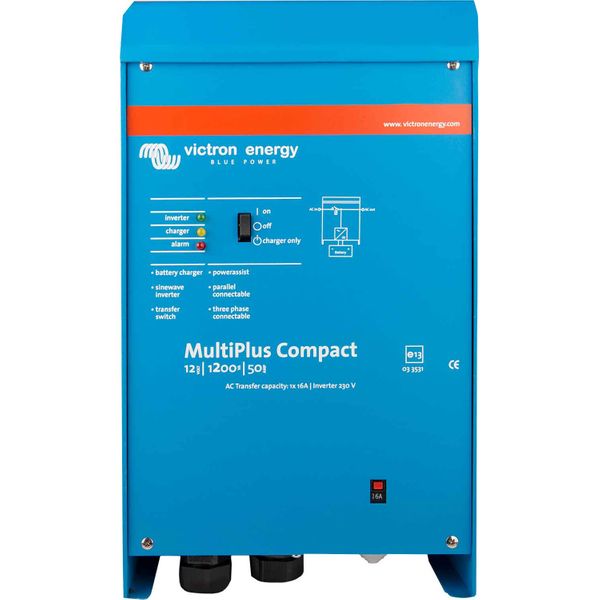

Victron MultiPlus Compact Inverter/Charger (12V / 1200VA)



Part No: VC-CMP121220000

The Victron MultiPlus is a combined power inverter and battery charger in one unit. The CMP121220000 is suitable for charging 12 volt batteries from 187-265V AC input, as well as producing a true sine wave 230V AC output from these 12 volt batteries.

When connected to shore power or a generator, the MultiPlus will draw a large current and use it to power any AC loads connected to the output side. Any leftover power will then be used for charging batteries, while protecting the supply side from overloading. If there are periods where AC load exceeds the input power, either by adding more appliances or by the input power being disconnected, the multi will switch to battery power within 20 milliseconds, so fast that electronic equipment will continue to operate without any disruption.

If more power is required, up to 6 Victron MultiPlus units can be used in parallel operation. Each unit also features protections against problems such as short circuits, over / under voltage, high temperatures etc to prevent failure. Monitoring and controlling your Victron MultiPlus is easy too, through the Color Control GX, the Venus GX or any smartphone/tablet or computer with internet connection.

Inverter

Input Voltage Range (V DC): 9.5V - 17V

Output: Output voltage: 230VAC ± 2% / Frequency: 50Hz ± 0,1%

Cont. output power at 25°C: 1000W

Cont. output power at 40°C: 900W

Cont. output power at 65°C: 600W

Peak power: 2400W

Maximum efficiency: 93%

Zero-load power: 8W

Zero-load power in AES mode: 5W

Zero-load power in search mode: 2W

Charger

AC Input: Input voltage range: 187-265 VAC / Input frequency: 45 – 65 Hz / Power factor: 1

Charge voltage 'absorption': 14.4V

Charge voltage 'float': 13.8V

Storage mode: 13.2V

Charge current house battery: 50A

Charge current starter battery: 4A

Battery temperature sensor: Yes



Application	FLA, SLA, AGM, GEL, LiFePO4 Batteries
Approvals	EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1, EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, ECE R10-4
Capacity Description	Recommended Battery Capacity: 250 - 500 Ah
Charge Characteristic	Automatic, adaptive
Connection [AC]	ST-18i plug
Efficiency	93%
Height Description	375mm
Material	Aluminium (blue RAL 5012)
Operating Temperature	-40°C to +65°C
Rating	IP21
External Temperature Sensor	Yes
Voltage Description	Charger Input: 187-265V AC, InVerter Input: 9.5-17V DC, InVerter Output: 230V AC ±2%
Wattage	Output @ 25°C: 1000W, Output @ 40°C: 900W, Output @ 65°C: 600W
Weight	10kg
Width	214mm
Brand	Victron
Style	Combined Inverters & Battery Chargers
Charger Short Circuit Protection	Yes
Frequency Description	Charger Input: 45-65Hz, Inverter Output: 50Hz ± 1%
Number of Outputs	1 + 4A float
Additonal Float Charge Output	4A
Optional Remote Panel	Yes, see data sheet
Cables Included	Yes, 1.5M DC
Output Frequency [Hz]	50
Output Power [W] Continuous	1200
Output Power [W] Peak	2400
Waveform	True Sine Wave
Connection [DC]	8mm rings
Amps Description	Transfer Switch: 16A
Depth	110mm
