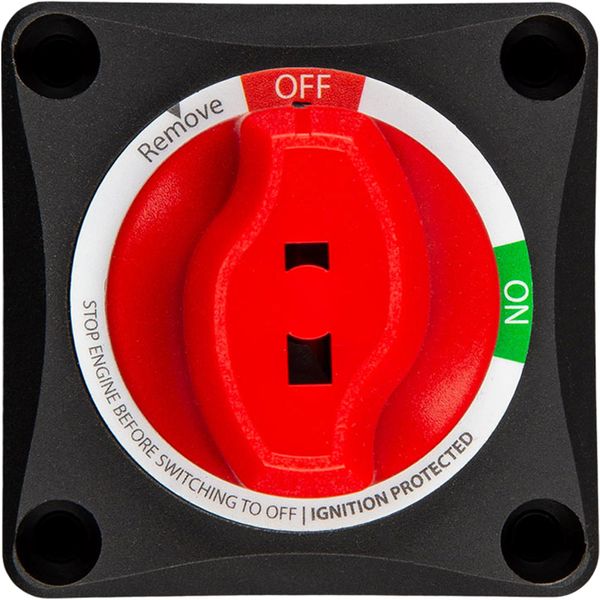

Victron Battery Switch for Surface/Panel Mount (On/Off / 275A)
Part No: VC-VBS127010010
Victron Battery Switch VBS127010010 is rated for 275 amps continuous current. The battery isolator switch features a unique ergonomic and aesthetic design with a removable On / Off knob for isolation / safety. It can be surface or rear panel mounted and is suitable for engine room use, with ISO8846 Ignition Protection certification.
Approvals
Meets ISO8846 / SAE J1171 Ignition Protection
Height Description
69mm
Material
Glass Fibre Reinforced Nylon Body, Tin-plated Copper Nuts & Terminals
Voltage Description
48V DC
Width
69mm
Brand
Victron
Battery Isolator Switch Selector
2-Way
Bolt Hole PCD Description
54.80mm
Diameter Description
Terminal: 9.53mm (3/8")
Torque
Recommended 8 N/m (70 lbf/inch)
Amps Description
Max. Continuous: 275A, One Minute at 450A, Cranking: 1200A
Depth
73mm
Share
View full details
Victron Battery Switch for Surface/Panel Mount (On/Off / 275A)
Part No: VC-VBS127010010
Victron Battery Switch VBS127010010 is rated for 275 amps continuous current. The battery isolator switch features a unique ergonomic and aesthetic design with a removable On / Off knob for isolation / safety. It can be surface or rear panel mounted and is suitable for engine room use, with ISO8846 Ignition Protection certification.
| Approvals | Meets ISO8846 / SAE J1171 Ignition Protection |
| Height Description | 69mm |
| Material | Glass Fibre Reinforced Nylon Body, Tin-plated Copper Nuts & Terminals |
| Voltage Description | 48V DC |
| Width | 69mm |
| Brand | Victron |
| Battery Isolator Switch Selector | 2-Way |
| Bolt Hole PCD Description | 54.80mm |
| Diameter Description | Terminal: 9.53mm (3/8") |
| Torque | Recommended 8 N/m (70 lbf/inch) |
| Amps Description | Max. Continuous: 275A, One Minute at 450A, Cranking: 1200A |
| Depth | 73mm |
