Victron Energy

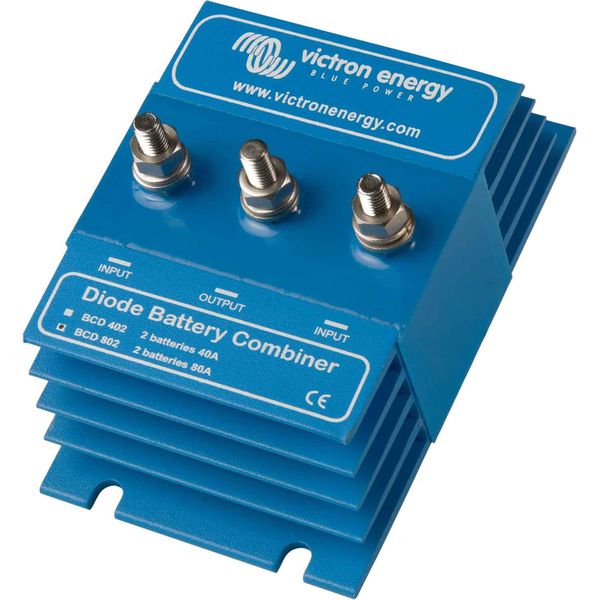

Victron Argo BCD 802 Diode Battery Combiner
Victron Argo BCD 802 Diode Battery Combiner
Regular price
£76.74 GBP
Regular price
£63.95 GBP
Sale price
£76.74 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Victron Argo BCD 802 Diode Battery Combiner
Part No: VC-BCD000802000
Victron 802 diode battery combiner is used to guarantee continuous DC power to important equipment, such as your boat's electronic engine control system. This battery combiner allows two batteries to be used in parallel to supply the critical load, so if one battery fails it will not interrupt power to your important electrical equipment. Victron Argo battery combiners feature a low voltage drop thanks to the use of Schottky diodes.
Warning: hot surface, mount the Argo Diode Battery Combiner on a non-flammable surface only.
Approvals
ISO9001, EN 61000-6-3:2007/A1:2011/AC:2012, EN 61000-6-2:2005/AC:2005, EN 61000-6-1:2007, EN 55014-1:2006/A2:2011, EN 55014-2:1997/A2:2008, ISO 7637-2:2011-03, EN 50581:2012 & CE
Height Description
42.5mm
Length
75mm
Voltage Description
Low Voltage Drop: 0.3V approximately, Rated Output Voltage Drop: 0.45V approximately
Width
120mm
Brand
Victron
Connections Description
M6 Bolts
Dimensions
Distance Between Mounting Hole Centres: 111.5mm x 45mm
Amps Description
Maximum Continuous Current: 80A
Share
View full details
Victron Argo BCD 802 Diode Battery Combiner
Part No: VC-BCD000802000
Victron 802 diode battery combiner is used to guarantee continuous DC power to important equipment, such as your boat's electronic engine control system. This battery combiner allows two batteries to be used in parallel to supply the critical load, so if one battery fails it will not interrupt power to your important electrical equipment. Victron Argo battery combiners feature a low voltage drop thanks to the use of Schottky diodes.
Warning: hot surface, mount the Argo Diode Battery Combiner on a non-flammable surface only.
| Approvals | ISO9001, EN 61000-6-3:2007/A1:2011/AC:2012, EN 61000-6-2:2005/AC:2005, EN 61000-6-1:2007, EN 55014-1:2006/A2:2011, EN 55014-2:1997/A2:2008, ISO 7637-2:2011-03, EN 50581:2012 & CE |
| Height Description | 42.5mm |
| Length | 75mm |
| Voltage Description | Low Voltage Drop: 0.3V approximately, Rated Output Voltage Drop: 0.45V approximately |
| Width | 120mm |
| Brand | Victron |
| Connections Description | M6 Bolts |
| Dimensions | Distance Between Mounting Hole Centres: 111.5mm x 45mm |
| Amps Description | Maximum Continuous Current: 80A |
