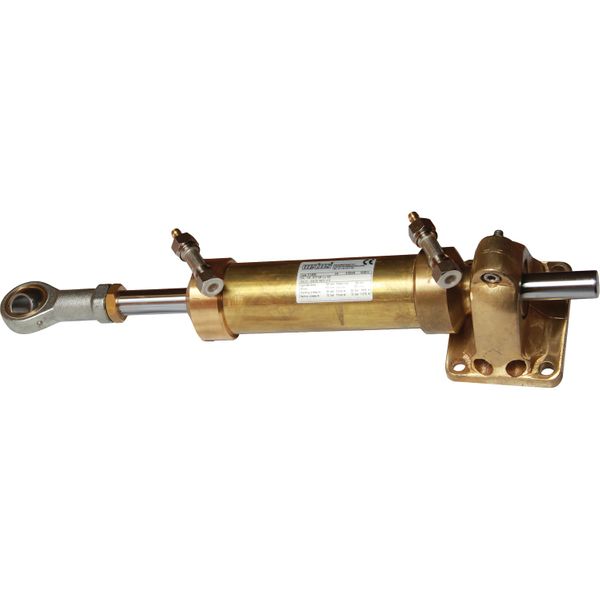

Vetus MTC125 Hydraulic Steering Ram (10mm Tubing / 125 KGM)
Part No: V-MTC12510
Vetus MTC12510 brass bodied hydraulic steering ram for marine applications. The steering ram features zinc plated rod ends, compression fittings and bleed nipples. A fixing bracket made from nylon is supplied with the Vetus hydraulic steering cylinder.
Volume: 2530mm³
| Capacity Description | 253cc |
| Length | Tiller Arm: 140mm |
| Brand | Vetus |
| Angle | Total Rudder Angle: 70° |
| Connections Description | Fittings to suit 10mm OD Pipe |
| Maximum Pressure | 5492 kPa |
| Model | MTC12510 |
| Operating Pressure | 797 Psi (56 Bar) |
| Recommended Tubing | Nylon steering hose 6mm ID / 10mm OD (V-HHOSE6015), Nylon steering 8mm ID / 12mm OD (V-HHOSE8015), Steering hose 8mm ID / 14.2mm OD (603508), Soft annealed red copper / steel tubing 8mm ID / 10mm OD. |
| Stroke | 160mm (6.3") |
| Thread Size | Rod End Thread: M20, Connections: G1/4 female pipe thread |
| Torque | Maximum 125kgm (1226 Nm) |
