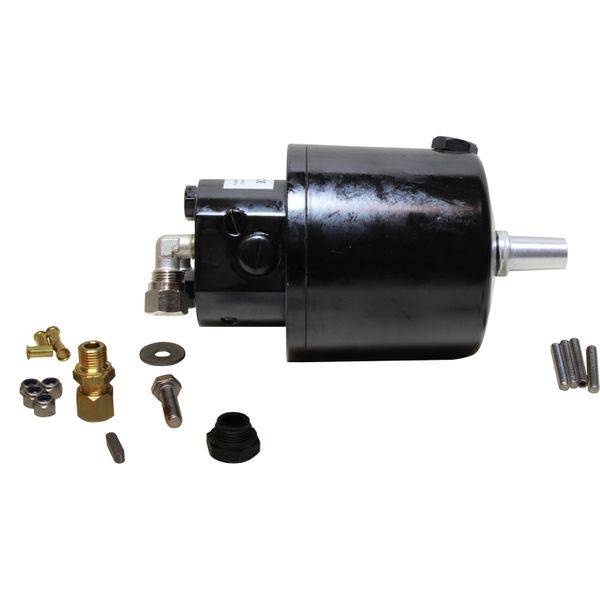

Vetus HTP3010RB Hydraulic Steering Helm Pump (Valves / 10mm Fittings)
Part No: V-HTP3010RB
The Vetus HTP3010RB black hydraulic steering pump is part of the new compact series of hydraulic steering pumps. The helm pump is suitable for use with Vetus cylinders MTC52 - 125.
The hydraulic steering helm pump has a four bolt rear face fixing and industry standard 3/4" taper shaft which can be mounted and operated in any angle from horizontal to vertical.
The HTP3010RB Vetus hydraulic steering helm pump features built in non-return and pressure relief valves.
The Vetus HTP3010RB helm pump is supplied as standard with:
- 10mm compression fittings for the pressure line with a balance pipe.
- Fixing studs, nuts and washers.
- One vented and un-vented filler plug.
- 5 Pistons
Note: You may require adaptor flange HTPF (38mm recess) or HTPF2 (78mm recess) to complete your installation. These are available to order separately.
| Capacity Description | 30cc |
| Brand | Vetus |
| Shaft Size | 3/4" Taper |
| Connections Description | Fittings to suit 10mm OD Pipe |
| Displacement | Fixed |
| Intergral Check Valves | Yes |
| Model | HTP3010RB |
| Recommended Tubing | Nylon steering hose 6mm ID / 10mm OD (V-HHOSE6015), Nylon steering 8mm ID / 12mm OD (V-HHOSE8015), Steering hose 8mm ID / 14.2mm OD (603508), Soft annealed red copper / steel tubing 8mm ID / 10mm OD. |
