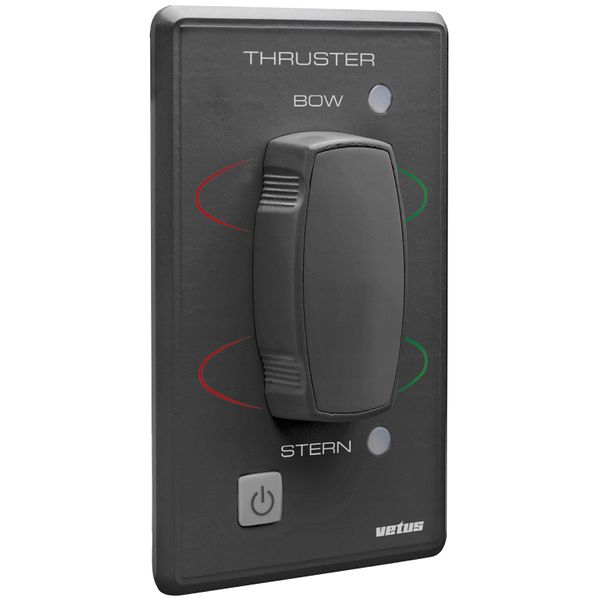

Vetus EZDOCK2 Easy Docking Control Panel (Bow & Stern Thrusters)

Part No: V-EZDOCK2

The Vetus EZDOCK2 easy docking panel combines the functions of twin joysticks into one easy to operate knob. The simple and intuitive control ensures that operation of both a bow and stern thruster together becomes a smooth procedure.

The use of hall effect sensors in this control panel means there are no holes in it and is therefore completely watertight to IP67. The EZDOCK2 is protected against accidental or unauthorised operation, and control circuit overload. It features a panel power indicator and a built-in time lapse device when reversing the direction of rotation.

There is also an automatic switch-off after 30 minutes of inactivity (this feature is user selectable during installation). In the event of continuous running for more than 2 minutes, there is a warning LED and buzzer, and the thruster will switch off automatically (the panel resets itself after 5 seconds).

- Dimensions: 85 x 138mm.

- Watertight to IP67.

- Protected against accidental or unauthorised operation.

- Automatic switch-off.
