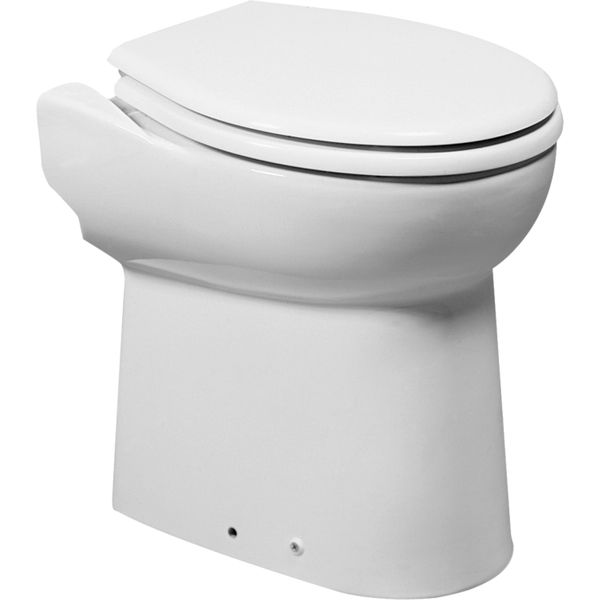

Vetus Deluxe Electric Toilet (12V / Compact Bowl)

Part No: V-WC12S2

Vetus WC12S2 is a deluxe style electric toilet suitable for installation on all boats with a 12 volt DC system. The toilet is extra quiet and features a compact sized bowl.

This Vetus toilet features a stylish designed porcelain bowl with an easy to clean seat, all in a regular household style size. Flushing water can be drawn from the main pressurised fresh water system or from filtered raw water intake (components not included). The waste water flows through a cutter knife powered by a macerator motor, and then through the discharge line which includes a water lock and a non return valve to prevent backflow.

The Vetus WC12S2 is supplied with a wall mounted electronic control panel with chrome plated edges. The control panel features 3 operation functions: economy flush, normal flush and discharge only. The panel has a pre wired plug of 1.5 metres which connects to the 1.5 metre harness and socket supplied with the toilet.

Vetus Electric Toilet:

- Macerator Pump Operation Time: 7 Seconds

- Toilet Noise Output: 61dB(A)

- Pump Capacity: 36 litres per minute at 3 metres head

- Pump Power Consumption: 300 Watts

- Economy Flush Usage: 1.2 litres of water

- Normal Flush Usage: 2.2 litres of water
