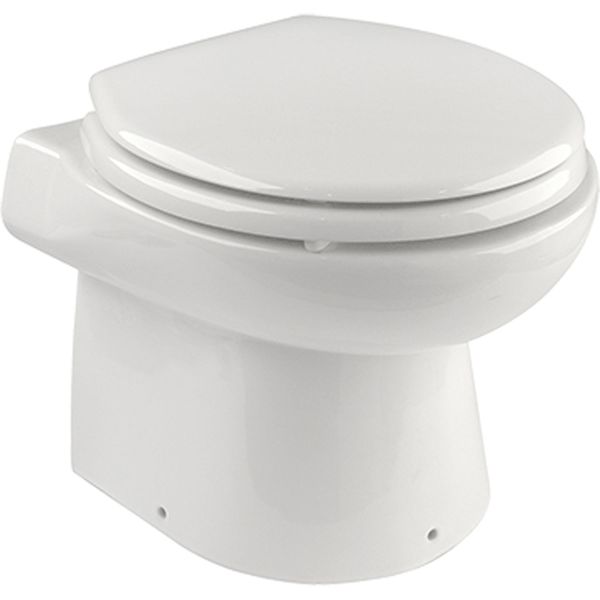

Vetus Compact Electric Toilet (24V / Regular Bowl)

Part No: V-SMTO224

Vetus SMTO224 is a compact electric toilet suitable for installation on all boats with a 24 volt DC system. The compact nature of this toilet allows it to be installed in smaller areas.

This Vetus toilet features a stylish designed porcelain bowl with an easy to clean seat, all in a regular household style size. Flushing water can be drawn from the main pressurised fresh water system or from filtered raw water intake (components not included). The waste water flows through a cutter knife powered by a macerator motor, and then through the discharge line which includes a water lock and a non return valve to prevent backflow.

The Vetus SMTO224 is supplied with a wall mounted rocker control switch mounted with 2 screws. The control panel features 2 operation functions: fill and empty.

Vetus Electric Toilet:

- Macerator Pump Operation Time: 7 Seconds

- Toilet Noise Output: 61dB(A)

- Pump Capacity: 36 litres per minute at 3 metres head

- Pump Power Consumption: 300 Watts

- Economy Flush Usage: 1.2 litres of water

- Normal Flush Usage: 2.2 litres of water
