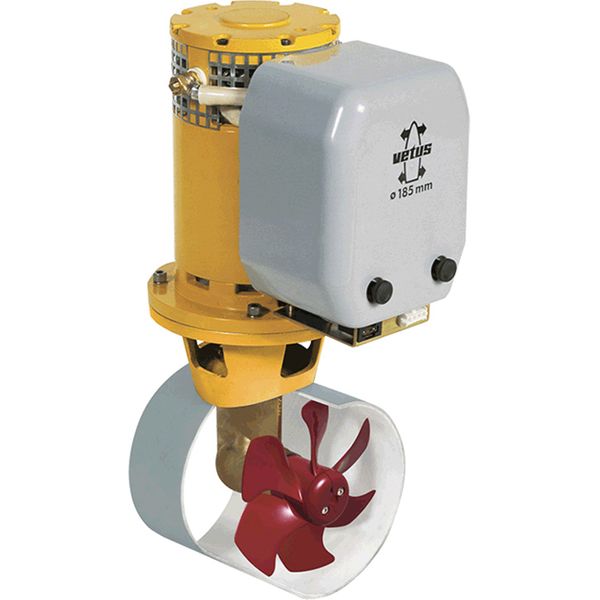

Vetus BOW9524D Electric Bow Thruster (105Kgf / 24V / 5.7kW / 8HP)



Part No: V-BOW9524D

The Vetus BOW9524D Bow Thruster is manufactured using the highest quality materials to provide you with high power output and a long service life. It is a direct replacement for the Vetus BOW9524B and Vetus BOW9524C.

- Thrust: 1050N (105kgf).

- Voltage: 24V.

- Power: 5.7kW (8hp).

- Reversible DC motor: Yes.

- Tunnel internal diameter: 185mm.

- Weight (excluding tunnel): 30kg.

- Current consumption: 320A.

- Operating time (max per hour): 3.5 minutes.

- Main fuse ("slow blow"): 200A.

- Batteries (min. Ah / max. Ah): 2 x 108 / 2 x 143.

Please contact us if you need help choosing the correct model Bow Thruster for your vessel. We would be happy to help.



Voltage Description	24V DC
Brand	Vetus
Electric Hydraulic	Electric
Power [kW hp]	5.7 / 7.6
Reversible DC Motor	Yes
Selection Guide	Vessels 12 to 17 meters in length
Thrust N kgF	1050 / 105
Diameter Description	185mm
Ignition Protected	No
Model	BOW9524D
Replaces	Vetus BOW9524B and BOW9524C
Amps Description	Current Consumption: 320A
