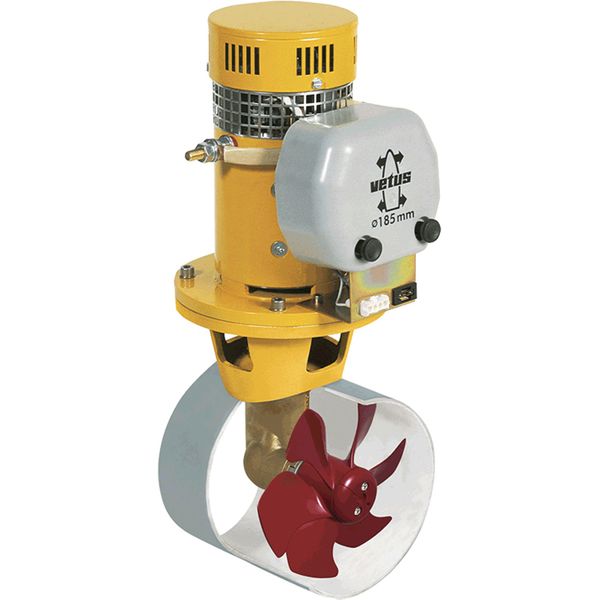

Vetus BOW7524D Electric Bow Thruster (85kgf / 24V / 4.4kW / 6HP)



Part No: V-BOW7524D

The Vetus BOW7524D Bow Thruster is manufactured using the highest quality materials to provide you with high power output and a long service life. It is a direct replacement for the Vetus BOW7524B and BOW7524C.

- Thrust: 850N (85kgf).

- Voltage: 24V.

- Power: 4.4kW (6hp).

- Reversible DC motor: Yes.

- Tunnel internal diameter: 185mm.

- Weight (excluding tunnel): 26kg.

- Current consumption: 280A.

- Operating time (max per hour): 3 minutes.

- Main fuse ("slow blow"): 200A.

- Batteries (min. Ah / max. Ah): 2 x 108 / 2 x 143.

Please contact us if you need help choosing the correct model Bow Thruster for your vessel. We would be happy to help.



Voltage Description	24V DC
Brand	Vetus
Electric Hydraulic	Electric
Power [kW hp]	4.4 / 6.0
Reversible DC Motor	Yes
Selection Guide	Vessels 10.5 to 15 meters in length
Thrust N kgF	850 / 85
Diameter Description	185mm
Ignition Protected	No
Model	BOW7524D
Replaces	Vetus BOW7524B and BOW7524C
Amps Description	Current Consumption: 280A
