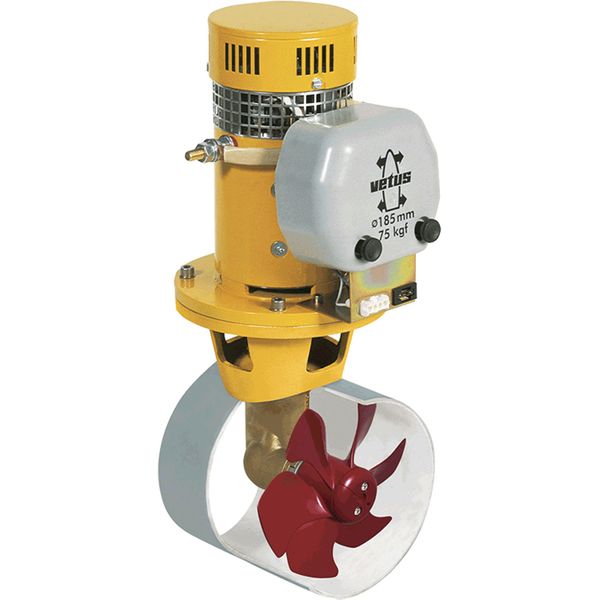

Vetus BOW7512D Electric Bow Thruster (80kgf / 12V / 4.4kW / 6HP)



Part No: V-BOW7512D

The Vetus BOW7512D Bow Thruster is manufactured using the highest quality materials to provide you with high power output and a long service life. It is a direct replacement for the Vetus BOW7512B and BOW7512C.

- Thrust: 800N (80kgf).

- Voltage: 12V.

- Power: 4.4kW (6hp).

- Reversible DC motor: Yes.

- Tunnel internal diameter: 185mm.

- Weight (excluding tunnel): 26kg.

- Current consumption: 500A.

- Operating time (max per hour): 2 minutes.

- Main fuse ("slow blow"): 355A.

- Batteries (min. Ah / max. Ah): 1 x 120 / 1 x 225.

Please contact us if you need help choosing the correct model Bow Thruster for your vessel. We would be happy to help.



Voltage Description	12V DC
Brand	Vetus
Electric Hydraulic	Electric
Power [kW hp]	4.4 / 6.0
Reversible DC Motor	Yes
Selection Guide	Vessels 10.5 to 15 meters in length
Thrust N kgF	800 / 80
Diameter Description	185mm
Ignition Protected	No
Model	BOW7512D
Replaces	Vetus BOW7512B and BOW7512C
Amps Description	Current Consumption: 500A
