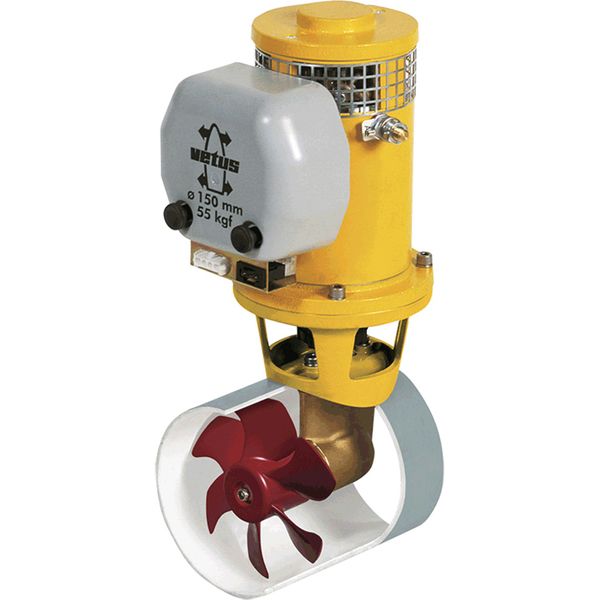

Vetus BOW5512D Electric Bow Thruster (55kgf / 12V / 3kW / 4HP)



Part No: V-BOW5512D

The Vetus BOW5512D Bow Thruster is manufactured using the highest quality materials to provide you with high power output and a long service life. It is a direct replacement for the Vetus BOW5512B and Vetus BOW5512C.

- Thrust: 550N (55kgf).

- Voltage: 12V.

- Power: 3kW (4hp).

- Reversible DC motor: Yes.

- Tunnel internal diameter: 150mm.

- Weight (excluding tunnel): 20kg.

- Current consumption: 350A.

- Operating time (max per hour): 4 minutes.

- Main fuse ("slow blow"): 250A.

- Batteries (min. Ah / max. Ah): 1 x 108 / 1 x 200.

- Suitable for vessels 8.5m to 12.5m in length.

Please contact us if you need help choosing the correct model Bow Thruster for your vessel. We would be happy to help.



Voltage Description	12V DC
Brand	Vetus
Electric Hydraulic	Electric
Power [kW hp]	3.0 / 4.0
Reversible DC Motor	Yes
Selection Guide	Vessels 8.5 to 12.5 meters in length
Thrust N kgF	550 / 55
Diameter Description	150mm
Ignition Protected	No
Model	BOW5512D
Replaces	Vetus BOW5512B and BOW5512C
Amps Description	Current Consumption: 350A
