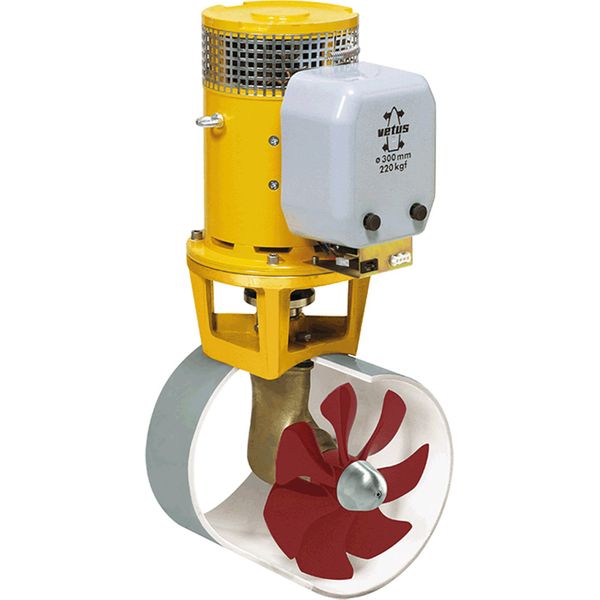

Vetus BOW22024D Electric Bow Thruster (220kgf / 24V / 11kW / 15HP)



Part No: V-BOW22024D

The Vetus BOW22024D Bow Thruster is manufactured using the highest quality materials to provide you with high power output and a long service life. It is a direct replacement for the Vetus BOW22024B and BOW22024C.

- Thrust: 2200N (220kgf).

- Voltage: 24V.

- Power: 11kW (15hp).

- Reversible DC motor: Yes.

- Tunnel internal diameter: 300mm.

- Weight (excluding tunnel): 68kg.

- Current consumption: 760A.

- Operating time (max per hour): 2.5 minutes.

- Main fuse ("slow blow"): 500A.

- Batteries (min. Ah / max. Ah): 2 x 200 / 4 x 165.

- Suitable for vessels 19.5m to 26m in length.

Please contact us if you need help choosing the correct model Bow Thruster for your vessel. We would be happy to help.



Voltage Description	24V DC
Brand	Vetus
Electric Hydraulic	Electric
Power [kW hp]	11.0 / 15.0
Reversible DC Motor	Yes
Selection Guide	Vessels 19.5 to 26 meters in length
Thrust N kgF	2200 / 220
Diameter Description	300mm
Ignition Protected	No
Model	BOW22024D
Replaces	Vetus BOW22024B and BOW22024C
Amps Description	Current Consumption: 760A
