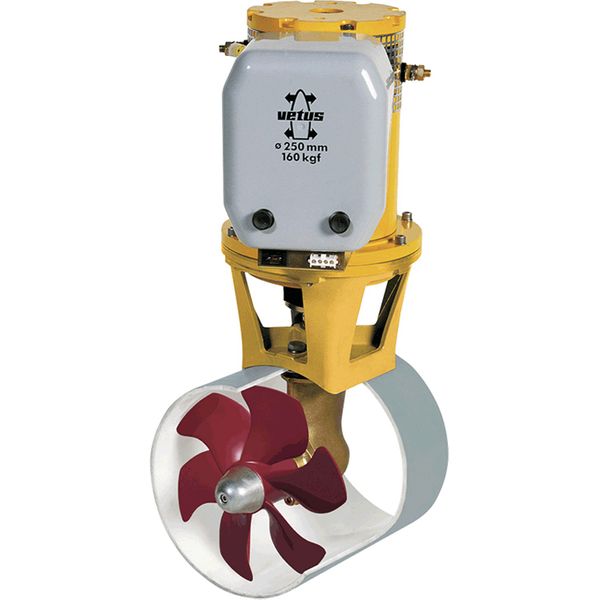

Vetus BOW16024D Electric Bow Thruster (160kgf / 24V / 7kW / 9.5HP)



Part No: V-BOW16024D

The Vetus BOW16024D Bow Thruster is manufactured using the highest quality materials to provide you with high power output and a long service life. It is a direct replacement for the Vetus BOW16024B and BOW16024C.

- Thrust: 1600N (160kgf).

- Voltage: 24V.

- Power: 7kW (9.5hp).

- Reversible DC motor: Yes.

- Tunnel internal diameter: 250mm.

- Weight (excluding tunnel): 37kg.

- Current consumption: 540A.

- Operating time (max per hour): 4.5 minutes.

- Main fuse ("slow blow"): 355A.

- Batteries (min. Ah / max. Ah): 2 x 165 / 4 x 165.

- Suitable for vessels from 16.5m to 22m in length.

Please contact us if you need help choosing the correct model Bow Thruster for your vessel. We would be happy to help.



Voltage Description	24V DC
Brand	Vetus
Electric Hydraulic	Electric
Power [kW hp]	7.0 / 9.4
Reversible DC Motor	Yes
Selection Guide	Vessels 16.5 to 22 meters in length
Thrust N kgF	1600 / 160
Diameter Description	250mm
Ignition Protected	No
Model	BOW16024D
Replaces	Vetus BOW16024B and BOW16024C
Amps Description	Current Consumption: 540A
