Vetus Aluminium Suction Vent (70HP Engines)

Vetus Aluminium Suction Vent (70HP Engines)

Regular price £241.15 GBP
Regular price Sale price £241.15 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

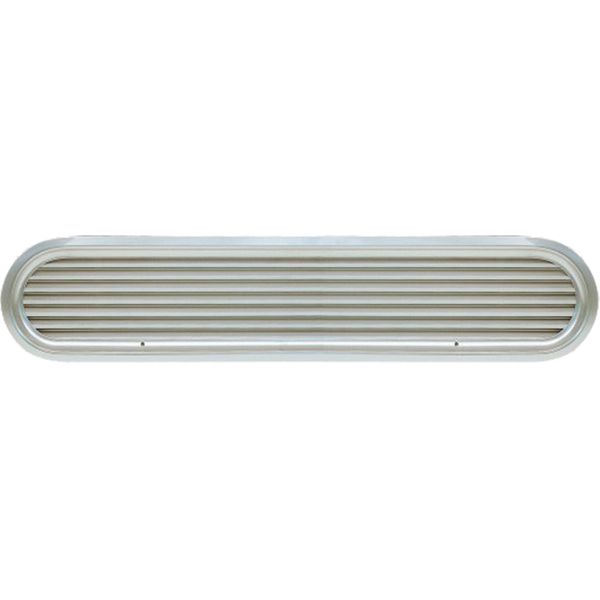

Vetus Aluminium Suction Vent (70HP Engines)



Part No: V-ASV070A

Vetus aluminium suction air vents, designed for engine rooms and other such applications. This air vent, with polished anodised aluminium frame and grills, uses suction to extract and vent hot air from the engine room.

A marine diesel engine also needs fresh combustion air to enter the engine room (around 4.5m³ per hp per hour), and this air vent allows this.

This Vetus air vent is suitable for engines up to 70hp, requiring 1 on starboard side and 1 port side.



Application Up to 70 HP Engines
Cut Out 139mm x 570mm (5-1/2" x 2.4"), End Radius: 69.5mm (2-3/4")
Height Description 159mm (6-1/4")
Material Polished anodised aluminium frame and grill
Width 590mm (23.2")
Brand Vetus
Primary Construction Aluminium
With Flyscreen No
Free Flow Area 2.83 dm²
Model ASV070A
Mounting Description Recess Mount
