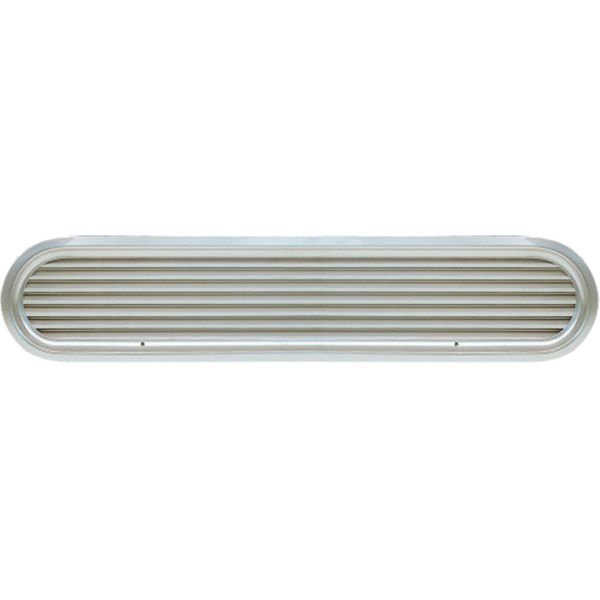

Vetus Aluminium Suction Vent (50HP Engines)
Part No: V-ASV050A
Vetus aluminium suction air vents, designed for engine rooms and other such applications. This air vent, with polished anodised aluminium frame and grills, uses suction to extract and vent hot air from the engine room.
A marine diesel engine also needs fresh combustion air to enter the engine room (around 4.5m³ per hp per hour), and this air vent allows this.
This Vetus air vent is suitable for engines up to 50hp, requiring 1 on starboard side and 1 port side.
Application
Up to 50HP Engines
Cut Out
126mm x 470mm (5" x 18-1/2"), End Radius: 63mm (2-1/2")
Height Description
146mm (5-3/4")
Material
Polished anodised aluminium frame and grill
Width
490mm (19.3")
Brand
Vetus
Primary Construction
Aluminium
With Flyscreen
No
Free Flow Area
2.02 dm²
Model
ASV050A
Mounting Description
Recess Mount
Share
View full details
Vetus Aluminium Suction Vent (50HP Engines)
Part No: V-ASV050A
Vetus aluminium suction air vents, designed for engine rooms and other such applications. This air vent, with polished anodised aluminium frame and grills, uses suction to extract and vent hot air from the engine room.
A marine diesel engine also needs fresh combustion air to enter the engine room (around 4.5m³ per hp per hour), and this air vent allows this.
This Vetus air vent is suitable for engines up to 50hp, requiring 1 on starboard side and 1 port side.
| Application | Up to 50HP Engines |
| Cut Out | 126mm x 470mm (5" x 18-1/2"), End Radius: 63mm (2-1/2") |
| Height Description | 146mm (5-3/4") |
| Material | Polished anodised aluminium frame and grill |
| Width | 490mm (19.3") |
| Brand | Vetus |
| Primary Construction | Aluminium |
| With Flyscreen | No |
| Free Flow Area | 2.02 dm² |
| Model | ASV050A |
| Mounting Description | Recess Mount |
