Vetus

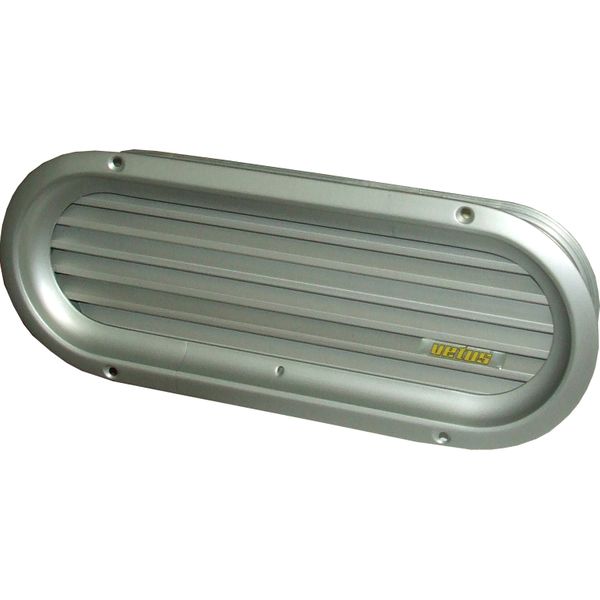

Vetus Aluminium Suction Vent (20HP Engines)
Vetus Aluminium Suction Vent (20HP Engines)
Regular price
£174.37 GBP
Regular price
£145.31 GBP
Sale price
£174.37 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Limited Stock - Call 01484 482269
Vetus Aluminium Suction Vent (20HP Engines)
Part No: V-ASV020A
Vetus aluminium suction air vents, designed for engine rooms and other such applications. This air vent, with polished anodised aluminium frame and grills, uses suction to extract and vent hot air from the engine room.
A marine diesel engine also needs fresh combustion air to enter the engine room (around 4.5m³ per hp per hour), and this air vent allows this.
This Vetus air vent is suitable for engines up to 20hp, requiring 1 on starboard side and 1 port side.
Application
Up to 20 HP Engines
Cut Out
97mm x 280mm (3.8" x 11"), End Radius: 48.5mm (1-7/8")
Height Description
117mm (4-5/8")
Material
Polished anodised aluminium frame and grill
Width
300mm (11.8")
Brand
Vetus
Primary Construction
Aluminium
With Flyscreen
No
Free Flow Area
0.83 dm²
Model
ASV020A
Mounting Description
Recess Mount
Share
View full details
Vetus Aluminium Suction Vent (20HP Engines)
Part No: V-ASV020A
Vetus aluminium suction air vents, designed for engine rooms and other such applications. This air vent, with polished anodised aluminium frame and grills, uses suction to extract and vent hot air from the engine room.
A marine diesel engine also needs fresh combustion air to enter the engine room (around 4.5m³ per hp per hour), and this air vent allows this.
This Vetus air vent is suitable for engines up to 20hp, requiring 1 on starboard side and 1 port side.
| Application | Up to 20 HP Engines |
| Cut Out | 97mm x 280mm (3.8" x 11"), End Radius: 48.5mm (1-7/8") |
| Height Description | 117mm (4-5/8") |
| Material | Polished anodised aluminium frame and grill |
| Width | 300mm (11.8") |
| Brand | Vetus |
| Primary Construction | Aluminium |
| With Flyscreen | No |
| Free Flow Area | 0.83 dm² |
| Model | ASV020A |
| Mounting Description | Recess Mount |
