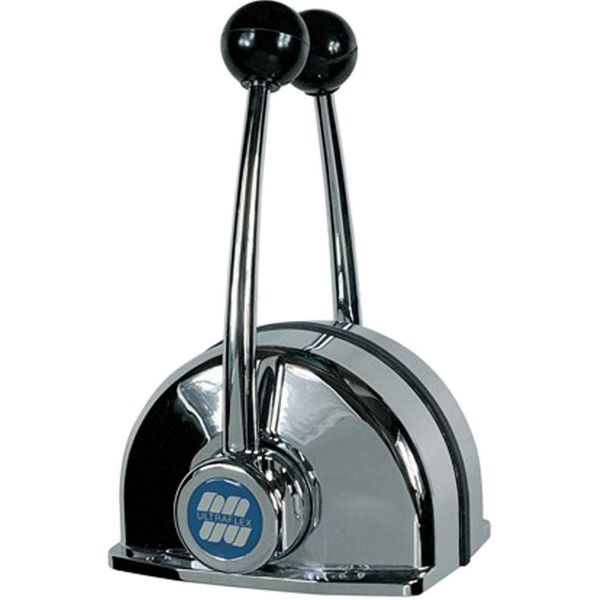

Ultraflex B104 Engine & Gear Change Control (Top Mount / Dual Lever)
Ultraflex B104 Engine & Gear Change Control (Top Mount / Dual Lever)
Ultraflex B104 Engine & Gear Change Control (Top Mount / Dual Lever)
Part No: 4-B104
Ultraflex B104 twin lever, dual function control lever with a chrome housing, suitable for any boat with 2 outboard engines, 2 inboard engines or I/O power plants. Each lever controls both throttle and gears and can feature an optional neutral safety switch (X43) to prevent accidental gear engagement. Other features include built in friction drag to reduce slippage and throttle creep as well as a pull out handle to engage neutral to warm up the engine. This control lever is suitable for mounting on top of a surface with the mechanism below the mounting surface. The Ultraflex twin control lever will surpass EN ISO 11547 standards when the safety switch is installed.
Ultraflex B104 control lever is suitable for use with Ultraflex C2, C8 & MACHZero engine control cables.
Height Description | Overall: 323mm (12.71"), Base: 104mm (4.09") |
Length | Base: 157mm (6.18"), Under Dash: 141mm (5.55") |
Material | Chrome Plated Housing |
Width | Base: 158mm (6.22"), Under Dash: 106mm (4.17") |
Brand | Ultraflex |
Colour | Chrome |
Number of Functions | Dual Function |
Number of Levers | Dual Lever |
Cable [Control Cable] | Ultraflex C2, C8 & MACHZero Control Cables |
Model | B104 |
Mounting Description | Top Mount |
